Safe-Hit® Delineator Post

The Safe-Hit® Delineator Post is constructed of flexible and durable co-extruded polyethylene with ultraviolet inhibitors. It is self-certified as a NCHRP Report 350 and MASH Category 1 Device, and tested to NTPEP.  It can be configured to MUTCD requirements for delineators or channelizing devices. The Safe-Hit® Delineator Post is ideal for roadside or lane line applications.

Product Inquiry Form

Features

  • Multiple base anchor options and portable bases.
  • Surface mount bases ideal for asphalt or concrete.
  • Soil anchors work in a wide range of soil types.
  • Portable bases available in 18 lbs. and 32 lbs.
  • Ultraviolet (UV) resistant.
  • Round post design can provide increased visibility in up to 360° direction.
  • High intensity, flexible prismatic reflective sheeting standard.
  • Standard post colors: white, yellow, orange.
  • Standard reflective colors: silver, amber, orange.
  • Custom post colors: blue, green, black, red, dark gray, light gray, yellow-green.
  • Heights range from 18″ to 54″ above grade.

Assembly

  • Lightweight delineator post.
  • Two piece, self-locking system helps reduce installation and replacement time.



Specifications

  • 18″ to 54″ High
  • 2.25″ Diameter
  • 3″ Width on Flattened Top Versions







Posts & Base Options

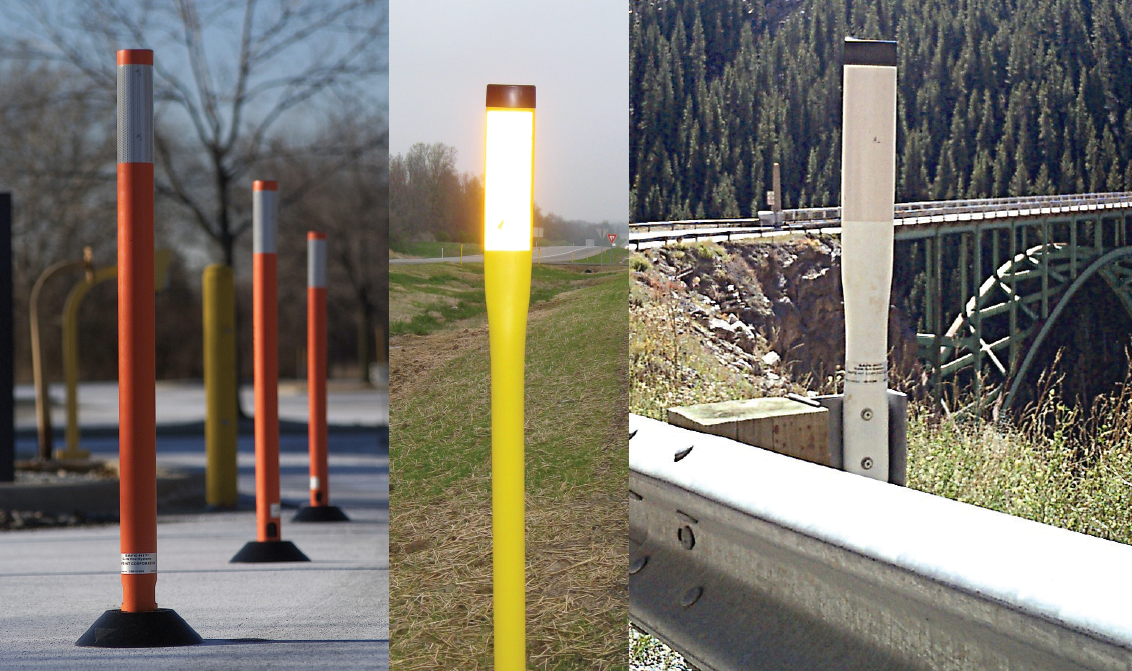

Surface Mount, Soil Anchor, or Guardrail Post Types

  • Multiple configurations with either flat top or round top to fit various applications.

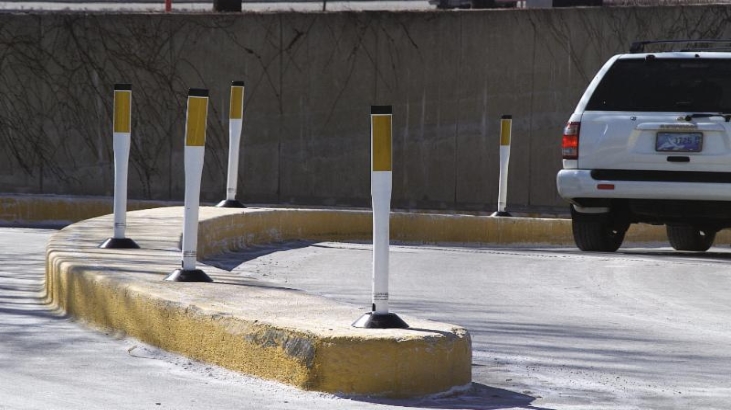

Surface Mount Base Options

  • Surface mount pin lock base
  • Surface mount twist lock base
  • Sub-level twist lock base
  • Sub-surface twist lock base
  • Portable base

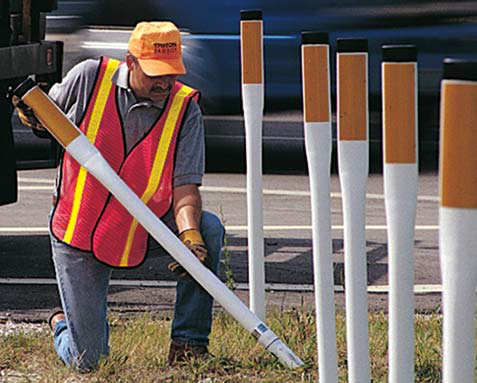

Soil Anchor Options

  • Open end galvanized anchor
  • Closed end galvanized anchor
  • 8″, 14″, 18″, and 24″ anchor lengths available for different soil conditions.

Product Images

Product Documents

PI Sheet

Safe-Hit® Delineator Post

Manuals

Safe-Hit® Surface Mount Placement Instructions
Safe-Hit® Soil Anchor Post Options
Safe-Hit (Open End Concrete) GP1 Anchor Assembly
Safe-Hit® & Dura-Post® Twister® Assembly
Safe-Hit RubberTough 360 – Field Service Flexible Hinge Replacement Instructions
Safe-Hit RubberTough 360 Soil Anchor – Placement Instructions
Safe-Hit RubberTough 360 Surface Mount
Safe-Hit PCD Mat RubberTough 360, Wheels Assembly



Brochure

Safe-Hit® Catalog



Drawings

SAFE-HIT TYPE 2 FLEXIBLE DELINEATOR GROUND MOUNT

SAFE-HIT TYPE 1 FLEXIBLE DELINEATOR GROUND MOUNT

SAFE-HIT TYPE 5 FLEXIBLE DELINEATOR GROUND MOUNT

SAFE-HIT TYPE 3 FLEXIBLE DELINEATOR GROUND MOUNT



SAFE-HIT TYPE 5 FLEXIBLE DELINEATOR SURFACE MOUNT

SAFE-HIT TYPE 3 FLEXIBLE DELINEATOR SURFACE MOUNT

SAFE-HIT TYPE 2 FLEXIBLE DELINEATOR SURFACE MOUNT

SAFE-HIT TYPE 1 FLEXIBLE DELINEATOR SURFACE MOUNT

Specifications

Safe-Hit® Ground Mount Two-Piece Flexible Delineator General Product Specification
Safe-Hit® Surface Mount Two-Piece Flexible Delineator General Product Specification

Reflective Sheeting & Labels

Reflective Sheeting (coming soon)
Reflective Field Application Procedure



Specialty Markers

Safe-Hit Parking Stop & Speed Bump Placement Instructions 617612
Safe-Hit Guardrail Delineator Assembly – For Steel Or Wood Guardrail Posts 618191
Safe-Hit Replacement Barrier Marker Assembly Instructions 618198
