Dura-Post®

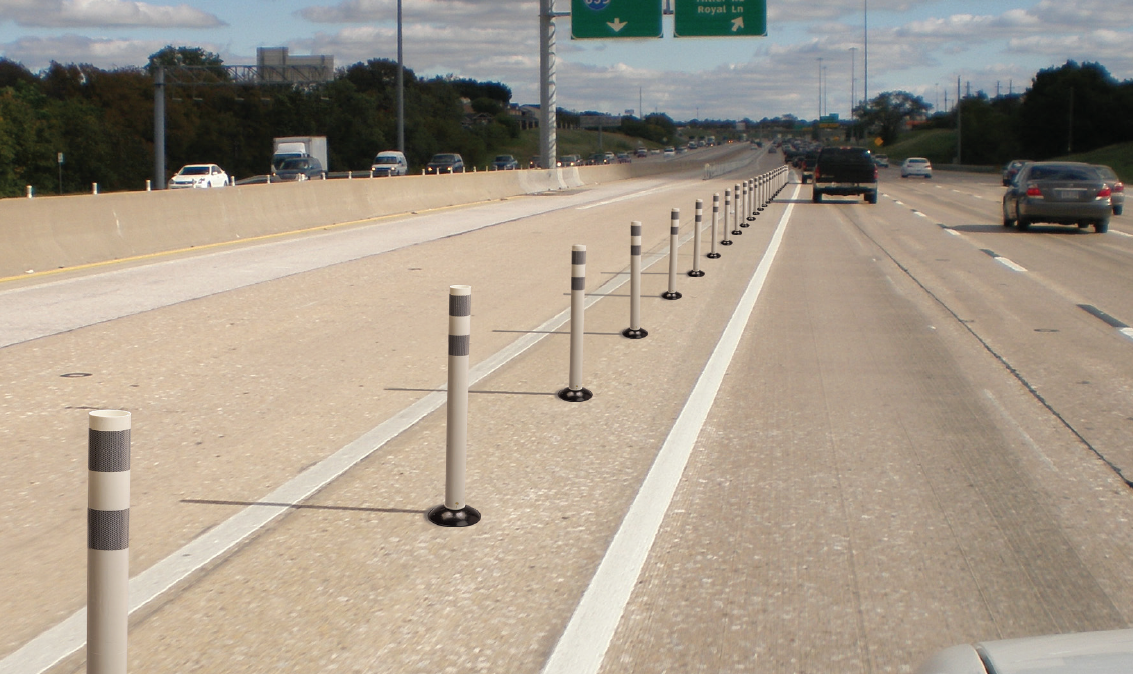

The Dura-Post® delineator is an injection molded urethane flexible post designed to withstand frequent high speed impacts. It is self-certified as a NCHRP Report 350 and MASH Category 1 Device, and tested to NTPEP.  It can be configured to MUTCD requirements for delineators, channelizing devices, and tubular markers. The Dura-Post® delineator post is best utilized in locations with high speed/high impact frequency and is ideal for assembly in construction zones, heavy traffic areas, bridges, and HOV/HOT lane demarcation.

Product Inquiry Form

Features

  • Tapered one piece urethane design.
  • Round post design can provide increased visibility in up to 360° direction.
  • Designed to remain flexible over a wide temperature range.
  • High intensity, flexible prismatic reflective sheeting standard.

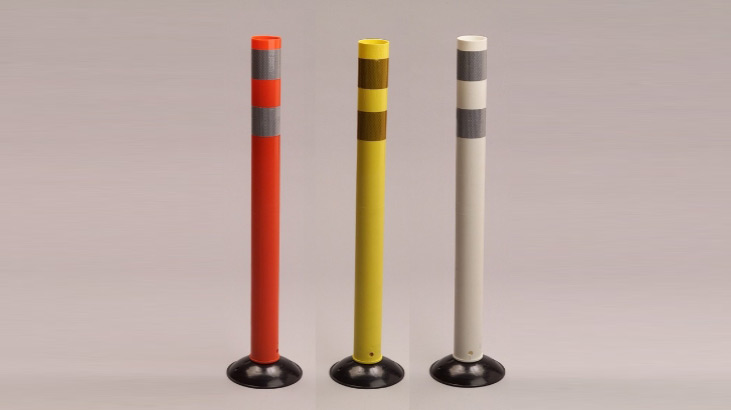

  • Standard post colors: white, yellow, orange.
  • Standard reflective colors: silver, amber, orange.
  • Custom post colors: blue, green, black, red, dark gray, light gray, yellow-green.
  • Various heights available.

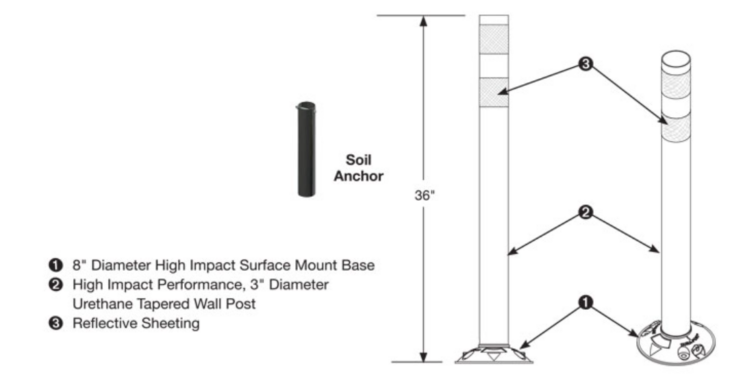

Specifications

  • 36″ High (various heights available)
  • 3″ Post Diameter
  • 2.11 lbs. (.95 kg)
  • 8″ Base Diameter

Product Documents

PI Sheet

Dura-Post® Delineator

Manuals

Dura-Post® Placement Instructions
Dura-Post® Placement Using Coupling Nut Anchors
Dura-Post® Placement Using Screw Anchors & Grout
Dura-Post® SX Upper Post Replacement Assembly
Safe-Hit® & Dura-Post® Twister® Assembly

Safe-Hit® & Dura-Post® Vertical Panels, Twister Base

Dura-Post Pipe Stub Mount Assembly

Drawings

Dura-Post® Surface Mount
Dura-Post® Ground Mount
Dura-Post® SX Surface Mount
Dura-Post® Twister™ Mount

Specifications

Dura-Post® Surface Mount General Product Specification

Brochures

Safe-Hit® Catalog

Product Images
