MATT^TM Median Attenuating TREND^® Terminal

MATT is a tangent, double-sided, redirective/gating and energy-absorbing attenuator/end terminal, for use with various longitudinal highway barriers in either unidirectional or bidirectional traffic applications – to include roadside, shoulder, median, and gore installations.

MATT is tested to MASH-2nd Edition (with 2020 Errata) Test Level 3 criteria and may be used in Test Level 1, Test Level 2, and Test Level 3 applications – when installed at the full Test Level 3 system length of 34′ 4-1/2″ [10.48 m].

Inquire

Product Inquiry Form

Please use the form below to Request a Quote or Technical Support.

Name *

First Name

Last Name

Company *

Email *

example@example.com

State *

Phone Number *

Product(s) of Interest

Type of Inquiry *

Request Quote

Technical Support

Tell us about your project or request

Features

Shortest MASH tested Median Terminal.
Galvanized steel components reduce weather/ UV related issues.
During testing, debris field was significantly contained.
Utilizes patented TREND® technology to absorb energy.
ALL post spacings are 6′ 3″ [1.905 m] on center.
Connects directly to double-sided Midwest Guardrail Systems (“MGS”) W-beam with 8″ (200 mm) blockouts.
Connection to double-sided Midwest Guardrail Systems (“MGS”) W-beam with 12″ (300 mm) blockouts can be achieved through the use of transition drawing SS6289.
Applications include Median, Roadside, Shoulder and Gore installations, for both approach and departure installations.

Specifications

System Weight: ~1,525 lbs. [~692 kg]
System Length: 34′ 4-1/2″ [10.48 m]
System Width (at impact head): 2′ 5″ [737 mm]
System Height (except impact head): 31″, +1″, -0” [787 mm, +25 mm, -0 mm]
Beginning Length-of-Need (“BLON”) established during MASH Test 3-35 at Post #3, 12′ 6″ [3.81 m] from Post 1.

Product Documents

PI Sheet

MATT^TM Median Attenuating TREND^® Terminal

Manuals

MATT^TM Product Description Assembly Manual

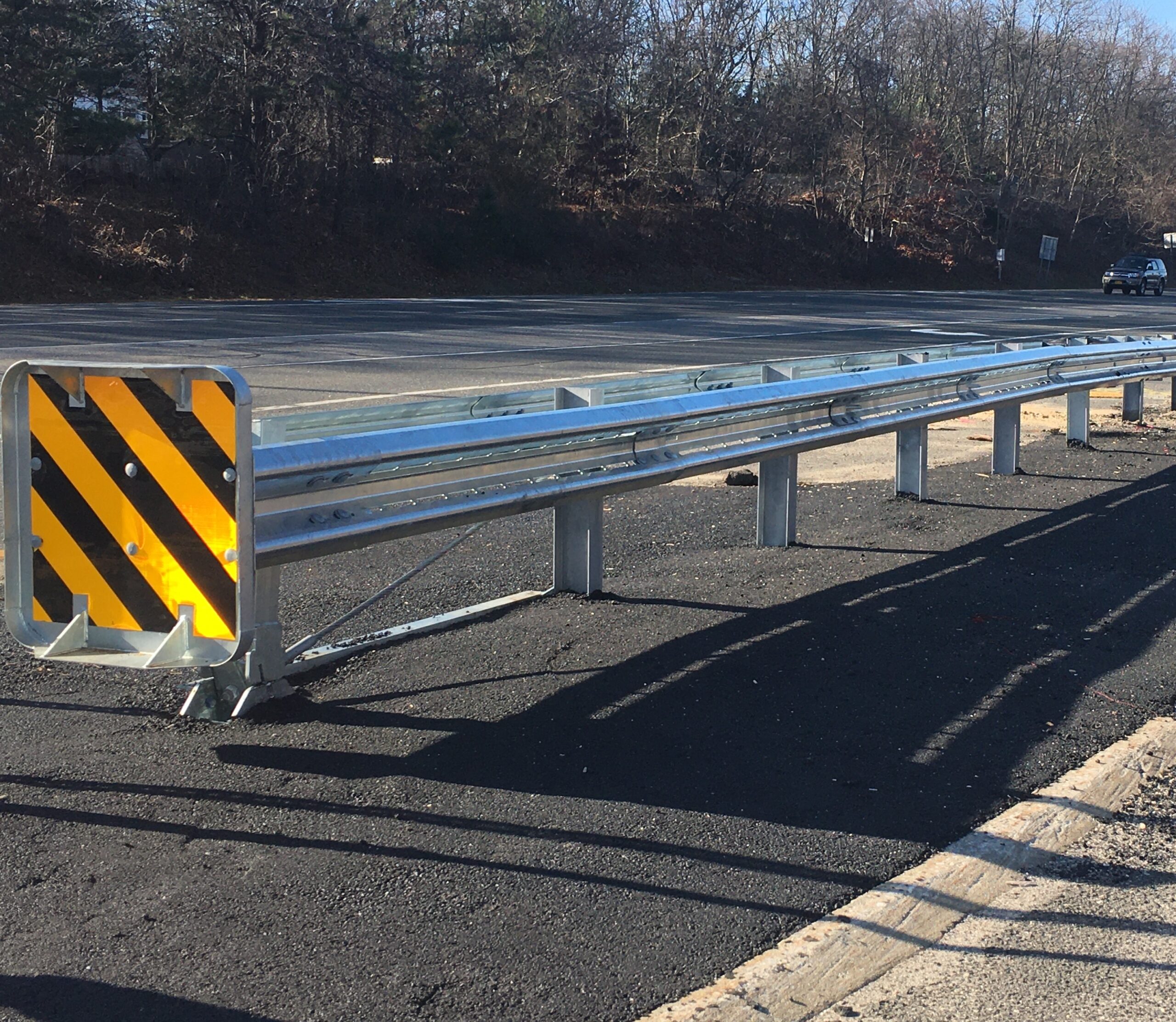

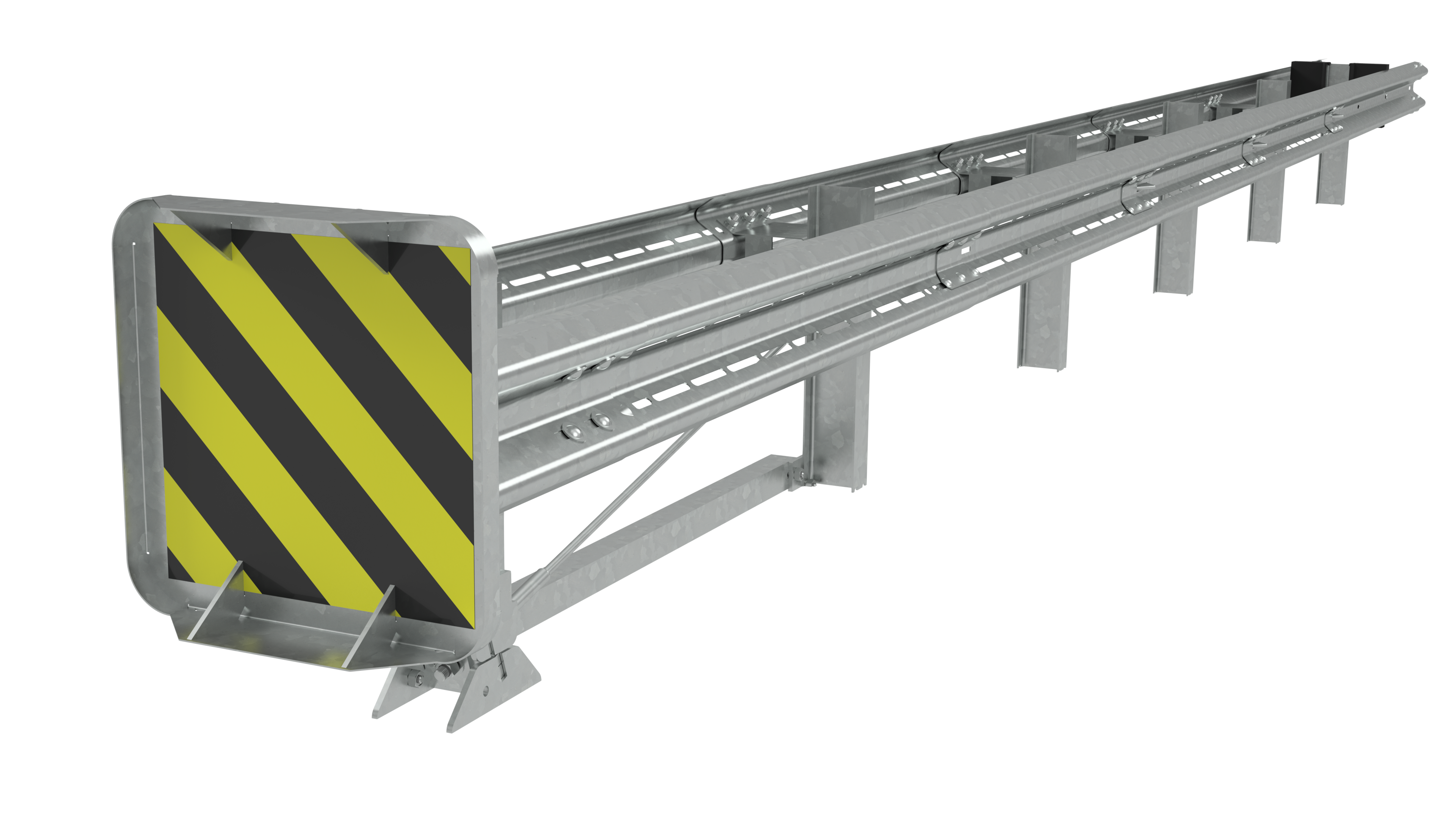

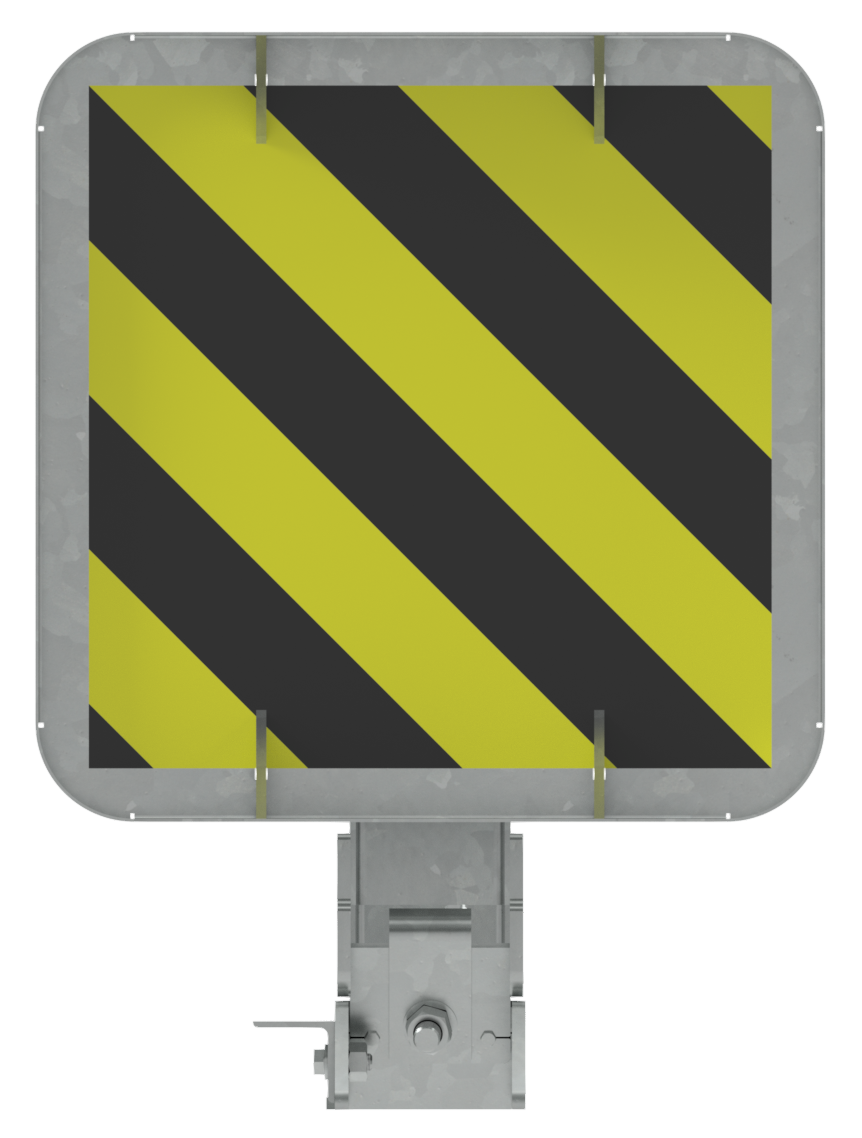

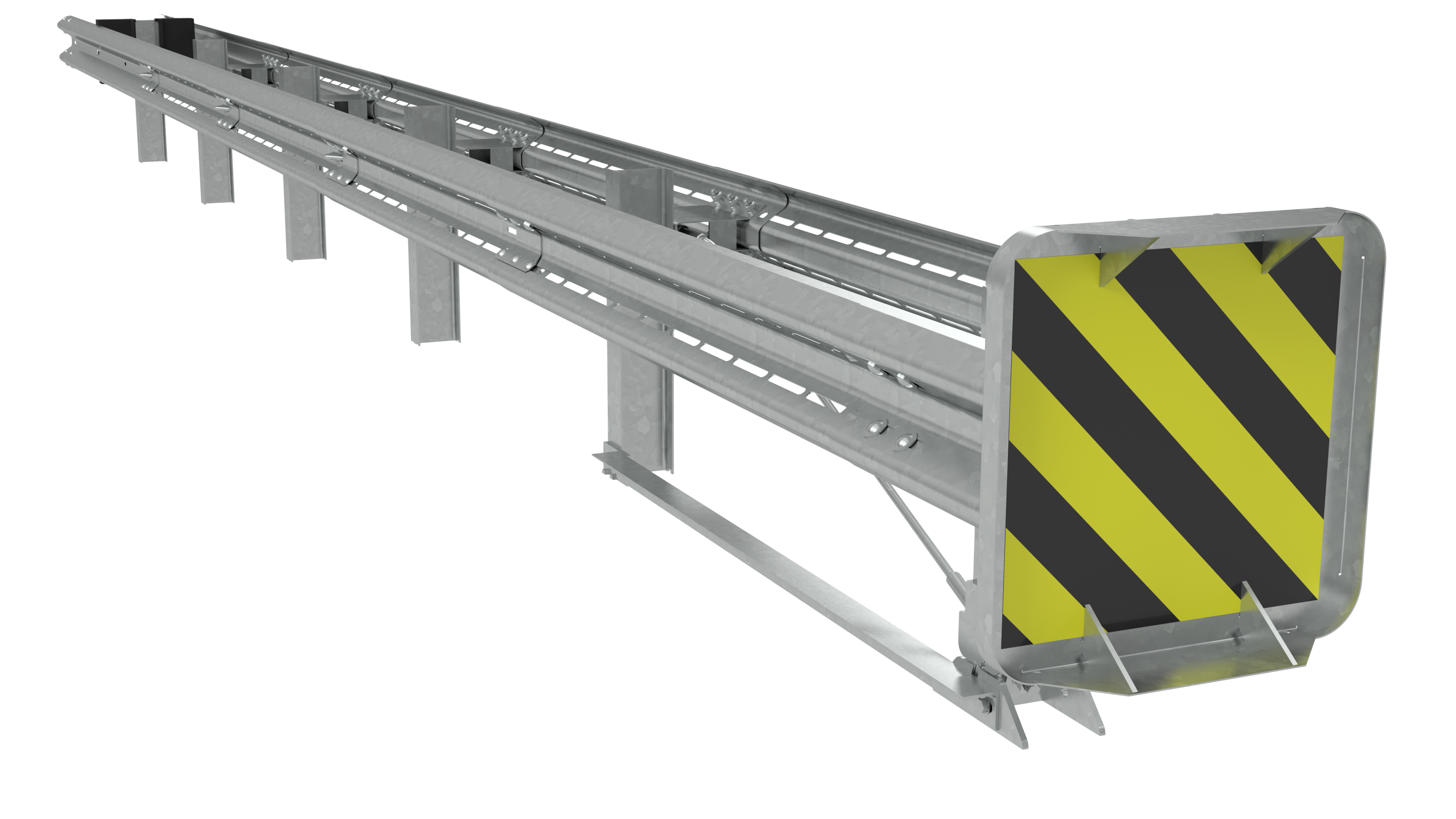

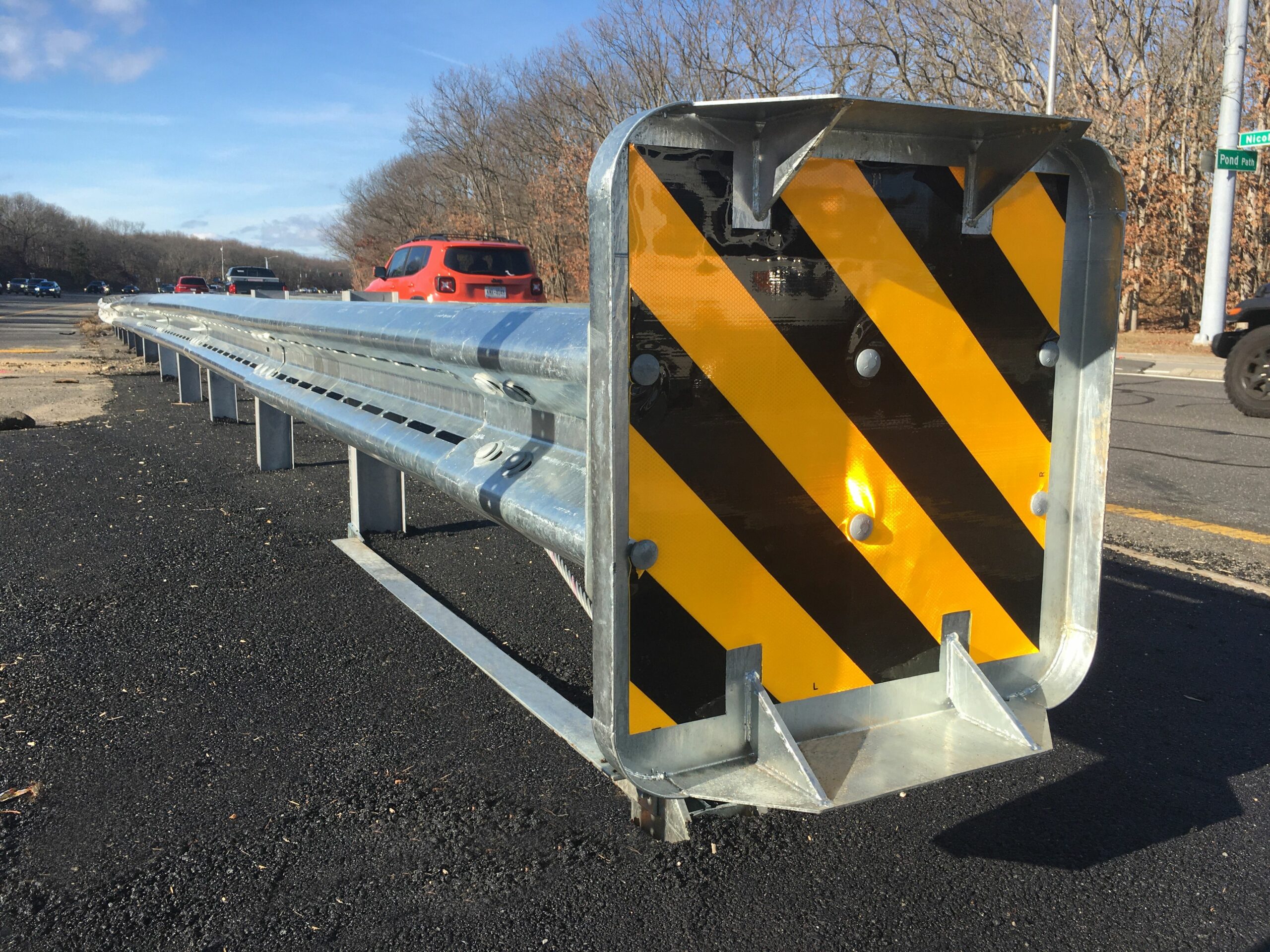

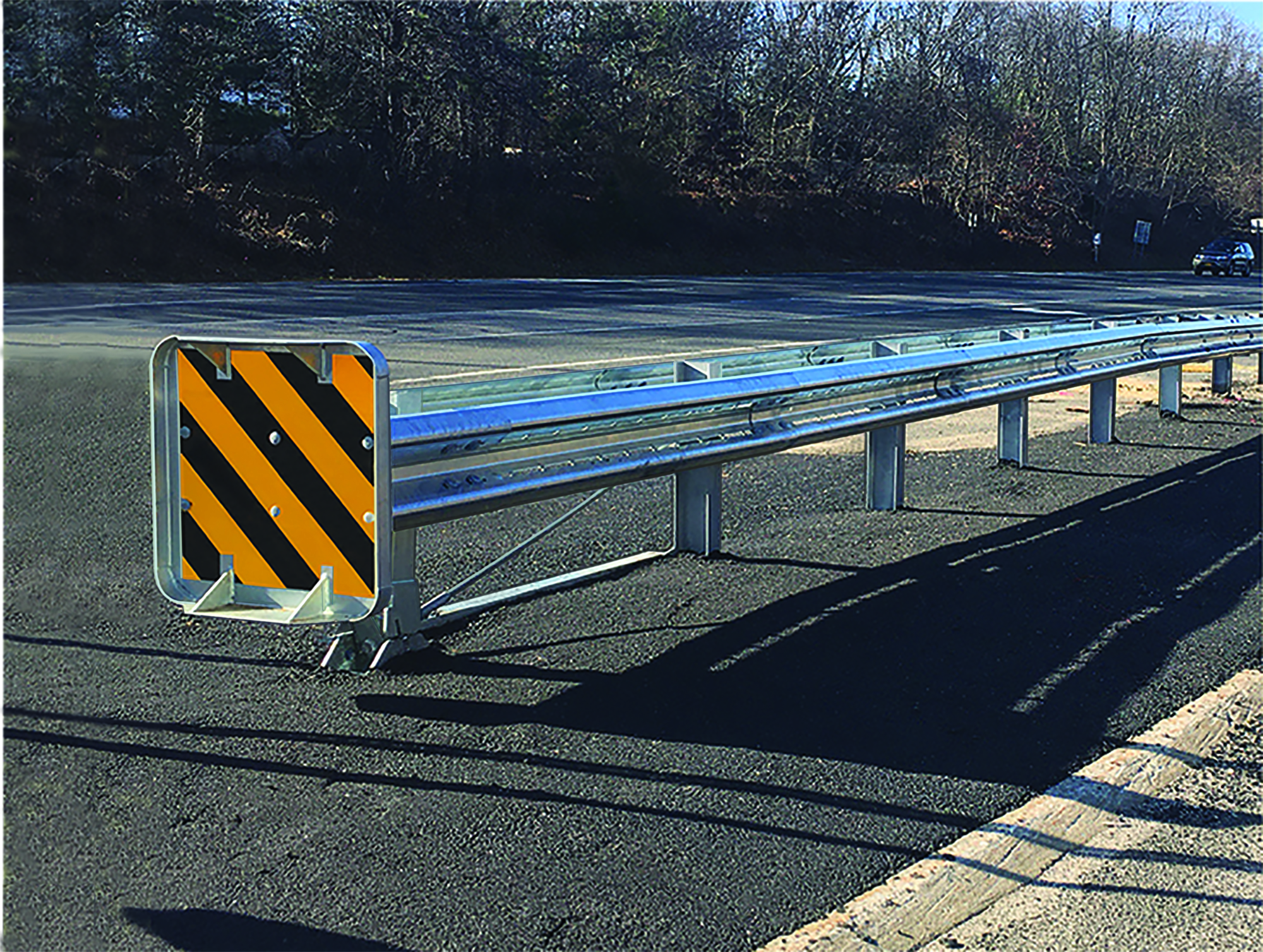

Product Images

MATT^TM Median Attenuating TREND^® Terminal
