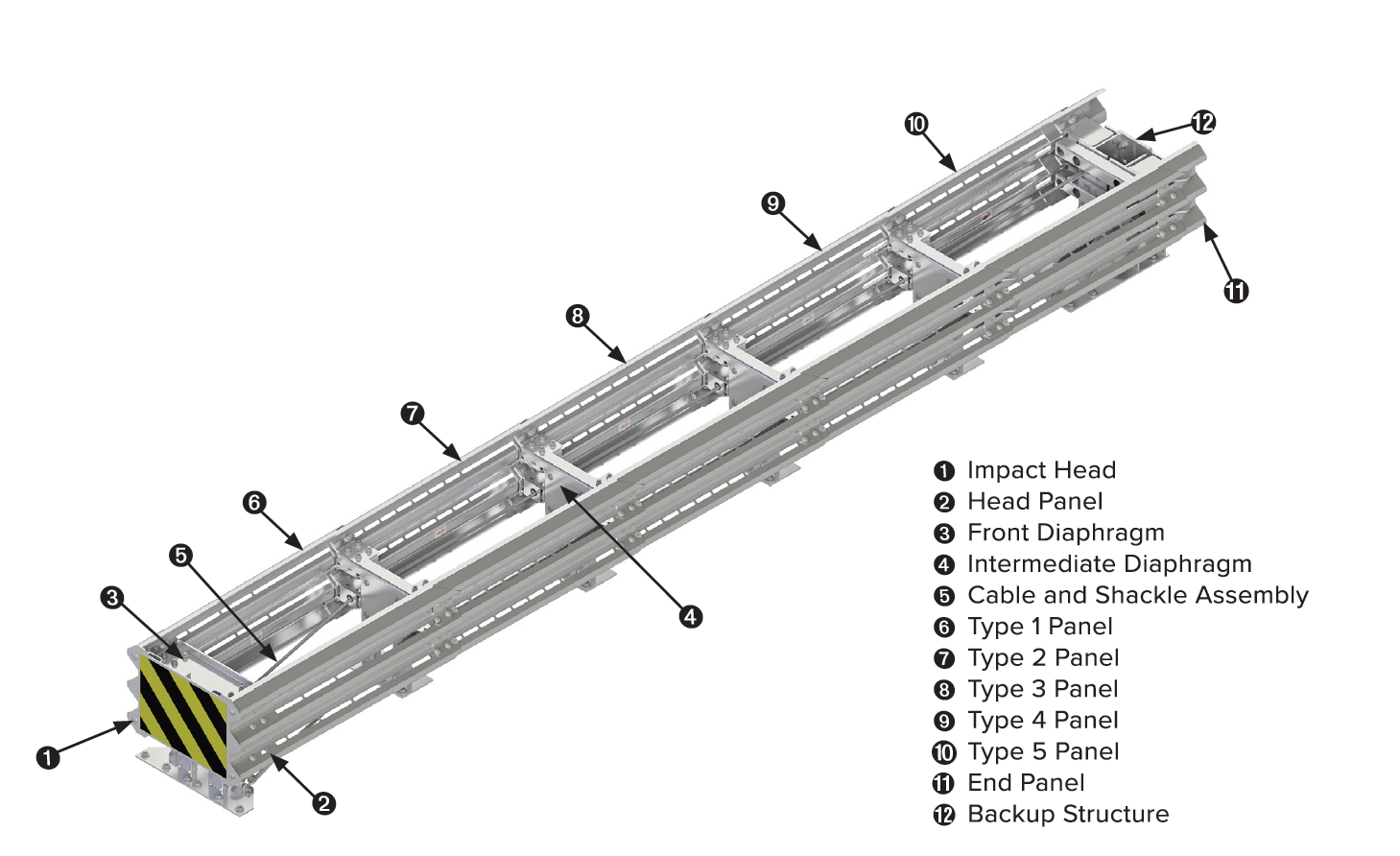

The CENTRA is a redirective, bi-directional crash cushion for hazards up to 610 mm wide and meets testing criteria described in the European Standard EN 1317-3:2010. The system is tested to 110 km/h, 100 km/h, and 80 km/h performance classes. The CENTRA includes an impact head assembly, a frontal impact diaphragm and anchor assembly, intermediate diaphragms, and a backup structure, all connected via cable assemblies and a series of specially designed thrie-beam panels.

Product Inquiry Form


  • Suitable for unidirectional or bidirectional applications.
  • Compact design.
  • Freestanding backup structure.
  • Open frame design helps facilitate inspection and maintenance.
  • Galvanized design for longer life and durability.
  • The CENTRA is CE marked and has been certified by an authorized EU Notified Body.


Assembly & Maintenance

  • Pre-Assembled Diaphragms and Backup Structure.
  • Optimized anchoring design for concrete and asphalt applications.
  • Bays of the system are connected using a thrie-beam panel system and cable assemblies unique to each performance class.
  • A simplistic, straightforward design allows for easy assembly and intuitive maintenance and repair.*
  • Can be assembled before transporting to the installation site.



  • W-beam barrier
  • Thrie-beam barrier 11
  • Concrete median barrier


*After an impact, the product must be inspected and evaluated per the direction of the specifying roadway authority. The ultimate decision on reparability rests with the specifying roadway authority.





Product Images


Product Documents

PI Sheet



CENTRA Manual 610 80K

CENTRA Manual 610 100K

CENTRA Manual 610 110K
