Vulcan® Moveable Barrier

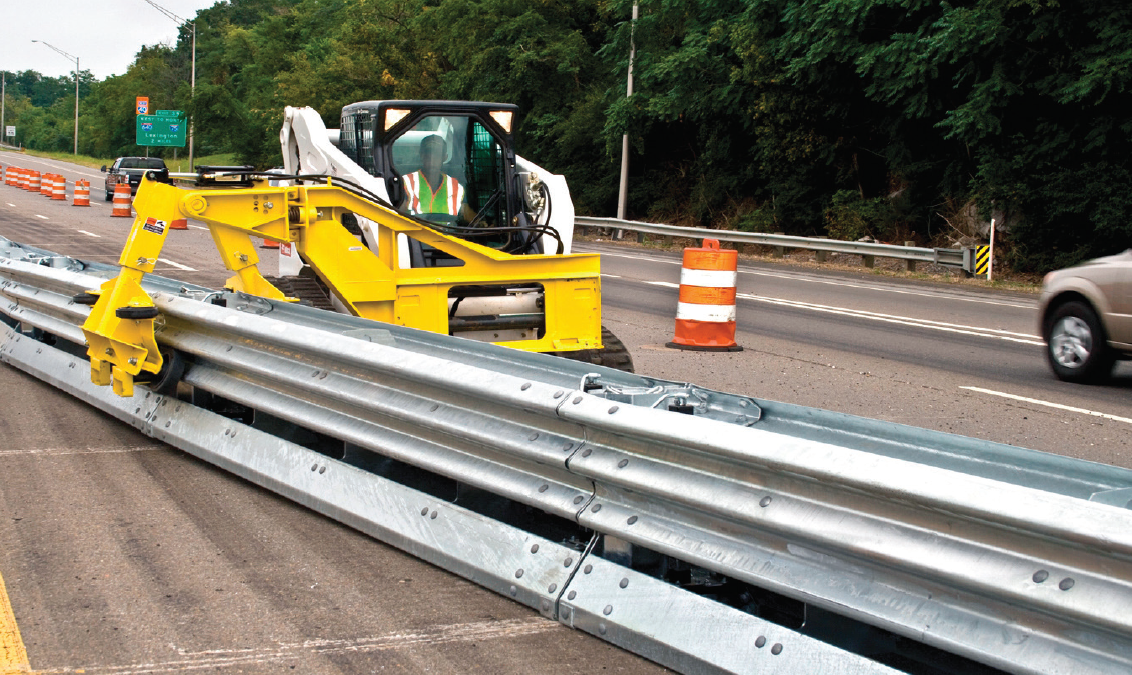

The Vulcan® Moveable Barrier is a steel barrier comprised of lightweight, galvanized steel segments. It is tested to NCHRP Report 350 Test Level 3 and Test Level 4, and EN1317 H2 and N2 specifications. The Vulcan® Moveable Barrier is designed for easier movement with the Vulcan® Transfer Attachment (VTA) when connected to a skid steer or front end loader. The VTA is also designed to help the operator work from either side of the barrier.

Product Inquiry Form

Features

  • One mile of Vulcan® Moveable Barrier can be opened or closed in approximately 20 minutes with the VTA.
  • Galvanized steel construction for durability.
  • Can be used on bridge decks.
  • Can be anchored with other compatible end treatments or used freestanding.
  • Compatible with the Vulcan® Gate.

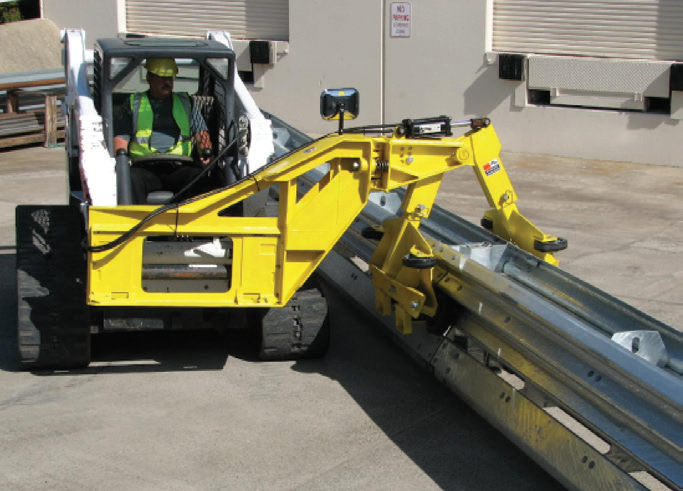

VTA Features

  • Attaches to a standard skid steer or front end loader.
  • VTA can be removed to allow the skid steer or front end loader to be used elsewhere in the work zone.

Assembly & Maintenance

  • Sections designed for easier replacement if damaged.
  • Can be installed anchored or freestanding.

Specifications

Vulcan® Moveable Barrier

  • 2’ 8″ (813 mm) High13.5′ (4.1 m) Long
  • 1’ 10.5″ (.546 mm) Wide
  • 1,020 lbs. (460 kg) Per Section

Vulcan® Transfer Attachment

  • 4’ 2″ (1.27 m) High
  • 3’ 10” (1.17 m) Long
  • 108″ (2.74 m) Skid

Steer Width

  • 1,160 lbs. (526 kg) Skid Steer
  • 120″ (3.05 m) Front End Loader Width
  • 1,450 lbs. (658 kg) Front End
