Triton Barrier® TL-3

The Triton Barrier® TL-3 is a portable, water filled barrier for redirective applications. The Triton Barrier® TL-3 features a pedestal system that attaches with a steel strap and allows the use of existing Triton Barrier® TL-2 in NCHRP Report 350 Test Level 3 applications. It is tested to NCHRP Report 350 Test Level 3.

Product Inquiry Form

Features

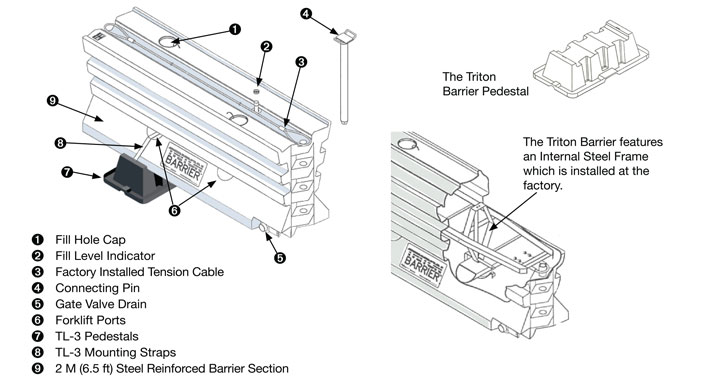

  • Steel reinforced polyethylene barrier sections.
  • Can be used as water filled longitudinal work zone barriers.
  • First 20 sections of Triton Barrier® TL-3 can be used as end treatment.
  • Transition hardware available for attachment to guardrail or concrete barrier.
  • Cost effective compared to portable concrete barriers.
  • Durable in adverse weather conditions.

Assembly & Maintenance

  • The minimum assembly length is 30 sections for Test Level 3.
  • Lightweight sections can be unloaded and positioned by hand.
  • Convenient forklift ports and fill level indicator.

Specifications

Triton Barrier® TL-2

  • 6’ 6″ (2 m) Long
  • 21″ (533 mm) Wide
  • 32″ (813 mm) High
  • 140 lbs. (65 kg) Empty Weight
  • 1,350 lbs. (610 kg) Water Filled Weight
  • 145 gallons (550 liters) Water Ballast

Triton Barrier® TL-3 (with Pedestal)

  • 31″ (787 mm) Long
  • 16.5″ (419 mm) Wide
  • 9″ (229 mm) High

Product Images

Product Documents

PI Sheet

Triton Barrier® TL-3

Manuals

Triton Barrier® TL-2 & TL-3 Assembly Manual 115661B
Triton Barrier® For TL-1, TL-2, TL-3 Product Description Manual 619487B
