SiteGuide®

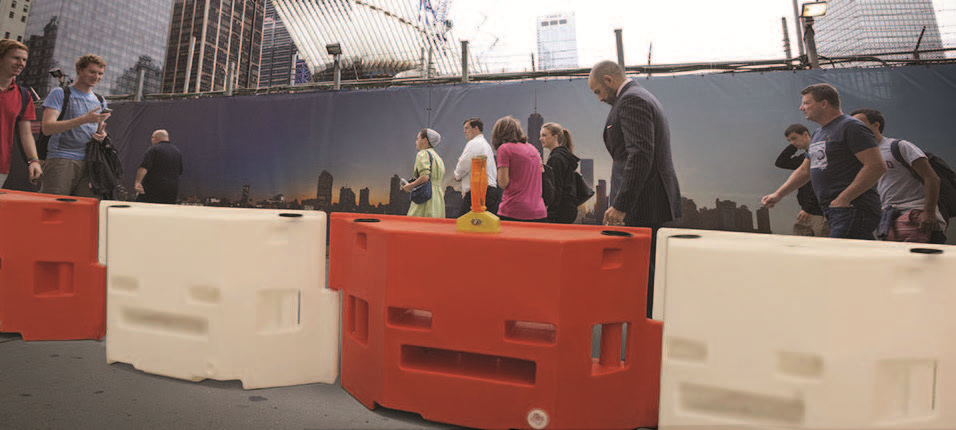

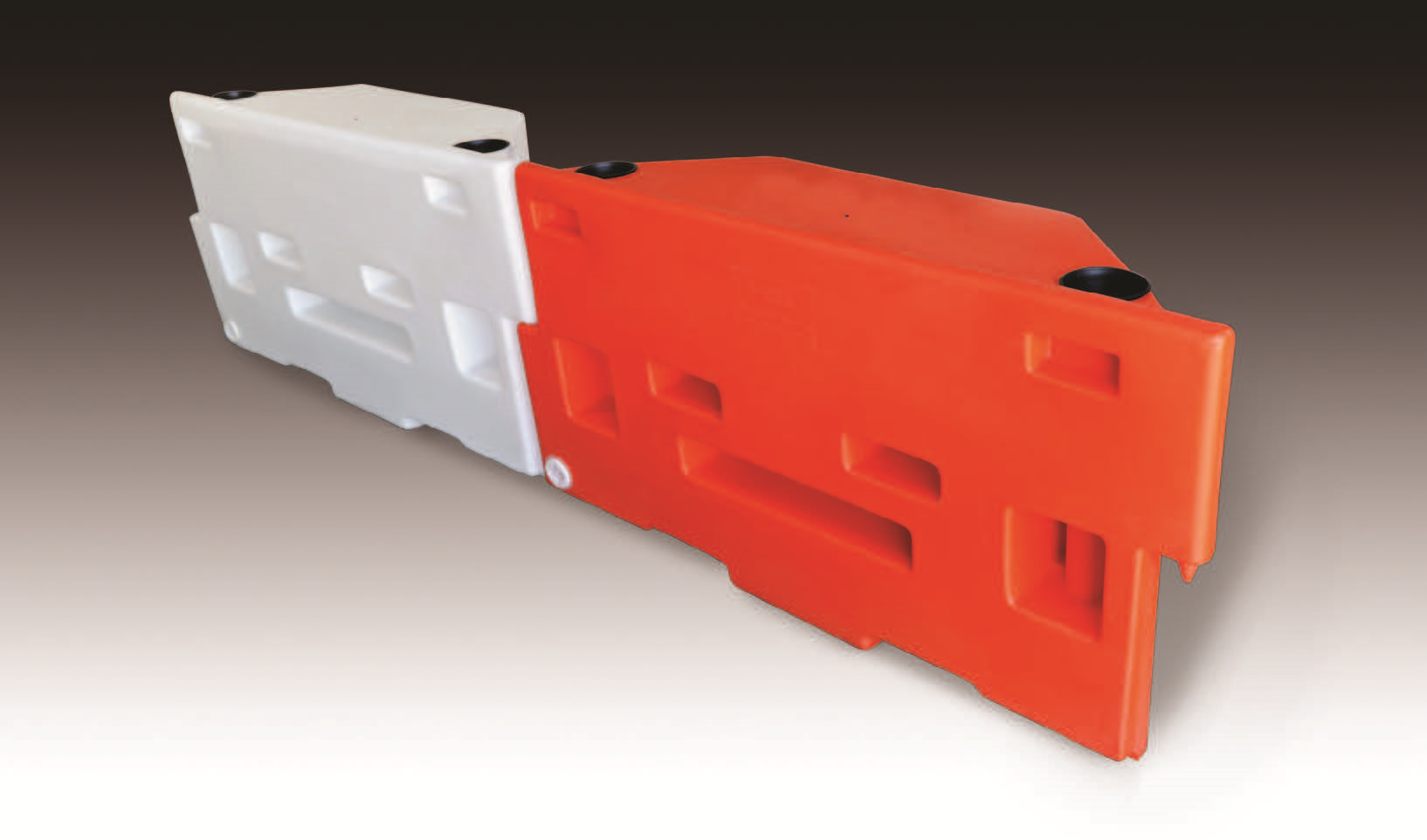

The SiteGuide® is an ADA-compliant, plastic, water-filled Longitudinal Channelizing Device (LCD) used for traffic and pedestrian channelization, road and street closures and perimeter security for vertical construction. It is tested to MASH-16 TL-3 as an LCD and is ADA-compliant as a pedestrian channelization device. Individual units can articulate 270° while connected to create inside and outside corners.

Product Inquiry Form

Features

  • Lightweight design facilitates convenient positioning by hand.
  • ADA-compliant, continuous hand-trailing guide and continuous base for long-cane use.
  • Can be accessorized with warning lights for traffic and pedestrian use.
  • Front and rear-facing drain plugs enable drainage from either or both sides.
  • Convenient hand holds for lifting and positioning.
  • Ground-level forklift ports (also act as drainage for water run-off).
  • Manufactured in the USA from durable Low-Density Polyethylene (LDPE).
  • Available in custom colors and standard high-contrast orange or white.
  • Tested to MASH-16 TL-3 as an LCD.

Applications



  • Construction and Temporary Work Zones
  • Longitudinal Channelizing Devices
  • Perimeter Security
  • ADA-compliant Pedestrian Channelization
  • Parking Facilities
  • Municipal and Public Utilities
  • Special Events
  • Crowd Control
  • Parks and Recreation

Specifications

  • 5′ Length
  • 16″ Width
  • 33″ Height
  • Empty Weight: 49 lbs
  • Full Weight: 668 lbs
  • Capacity: 74 gal.
