Safe-Hit® SQR-LOC® Flexible Delineator

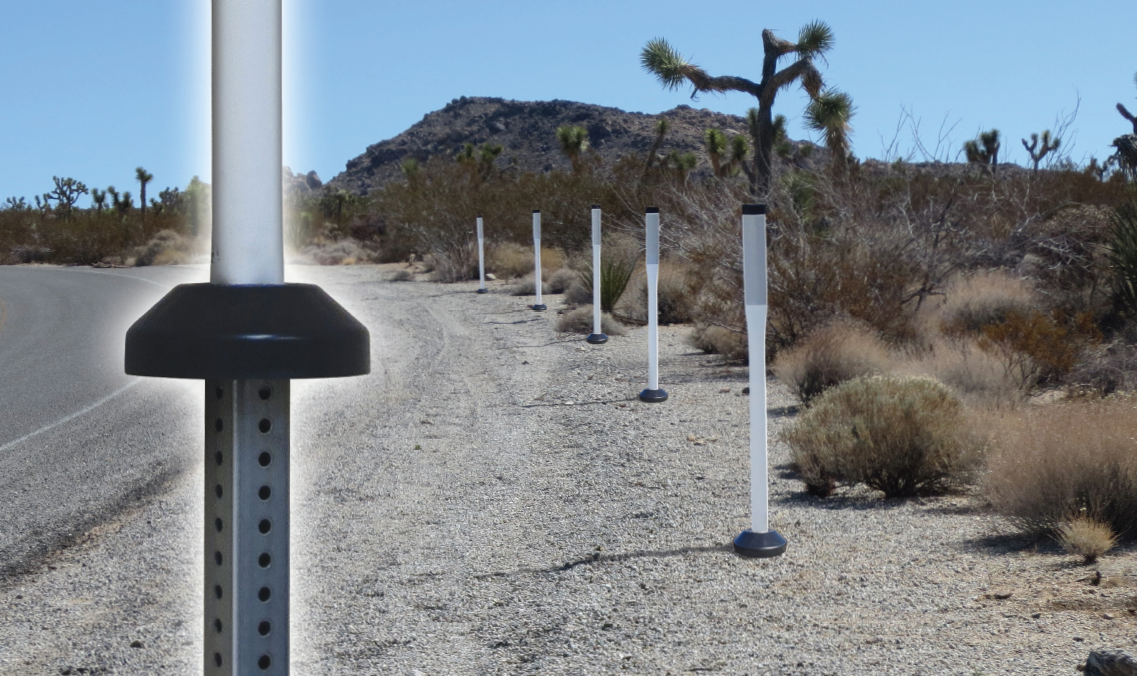

The Safe-Hit® SQR-LOC® Flexible Delineator combines the Safe-Hit® Delineator Post with standard 2″ perforated square tube anchors. The four-piece system consists of a post, anchor, collar, and pin. The system is assembled and secured with a single push-in roll-pin which helps to facilitate easier installation and maintenance. The Safe-Hit® SQR-LOC® Flexible Delineator is self-certified as a NCHRP Report 350 and MASH Category 1 Device, and tested to NTPEP. It can be configured to MUTCD requirements for delineators or channelizing devices and is ideal for soil mount applications.

Product Inquiry Form

Collar

8″ Protective Collar Designed to Help:

  • Protect the post hinge point from cutting during wheel over impacts.
  • Reduce tire puncture hazard by an exposed anchor.
  • Secure the retaining pin.
  • Inhibit vegetation growth around the post.
  • Provide protection to the post from impacts within NCHRP Report 350 and MASH Category 1 Device crash test standards.

Anchor

Standard 2″ Perforated Square Tube Anchor:

  • Common square sign post tube.
  • Enables direct replacement of existing installations that need repair.
  • Uses standard square sign post driver tools.
  • Can be used for soil or concrete installations.

Post

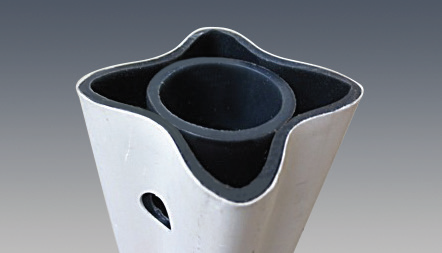

Uses Safe-Hit® Tube-in-Tube™ Delineator Technology:

  • Tested for impacts including bumper and wheel overs.
  • Same familiar look as standard Safe-Hit® Delineators.
  • Cross-Crimp™ post fits a wide range of anchor tolerances.



Additional Features

  • Ultraviolet (UV) resistant post.
  • Round post design can provide increased visibility in up to 360° direction.
  • Standard post colors: white and yellow.
  • Custom colors available.
  • Four piece self-righting, self-locking system helps reduce installation and replacement time.
  • Tested to NTPEP.
