Safe-Hit® Airport Marker

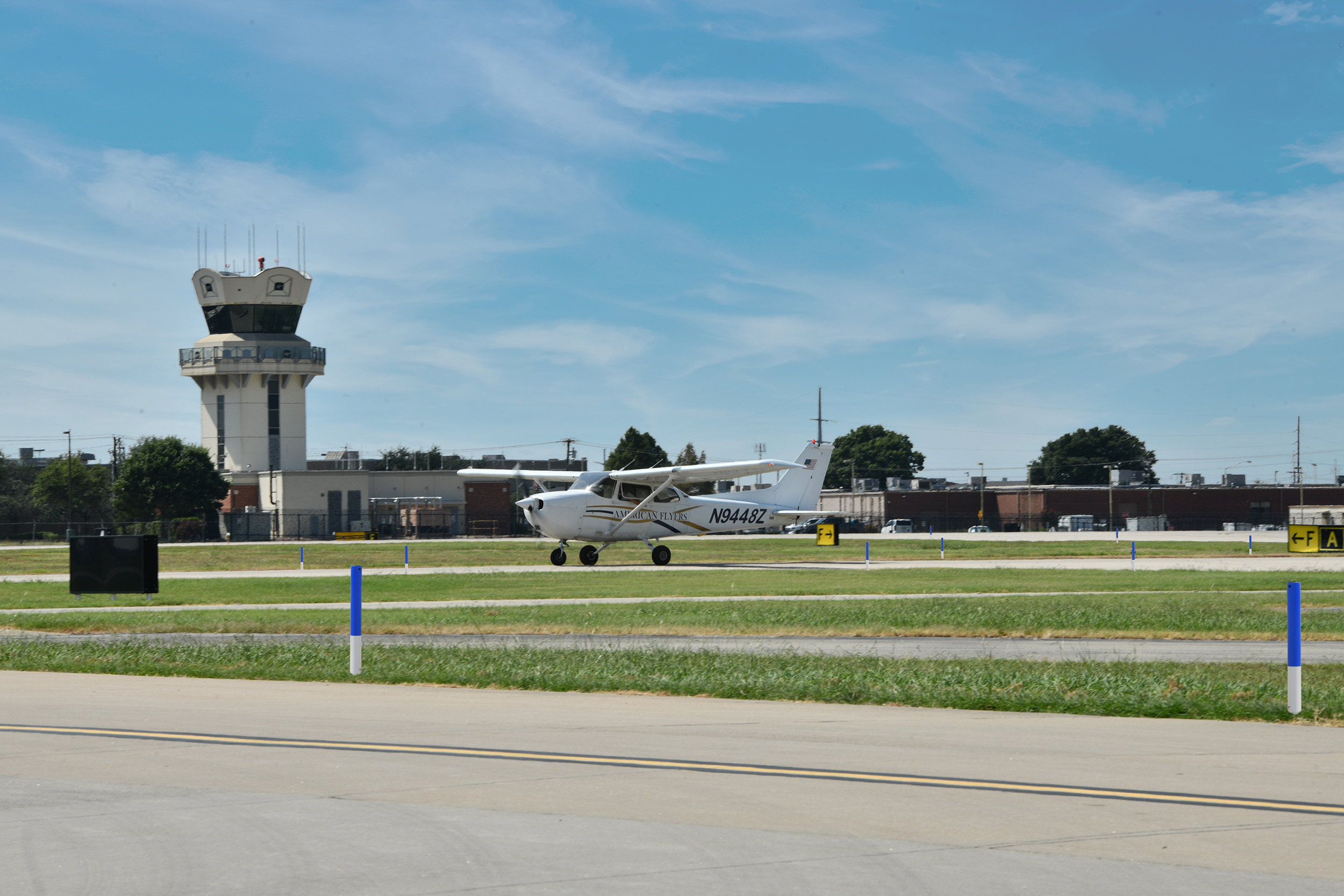

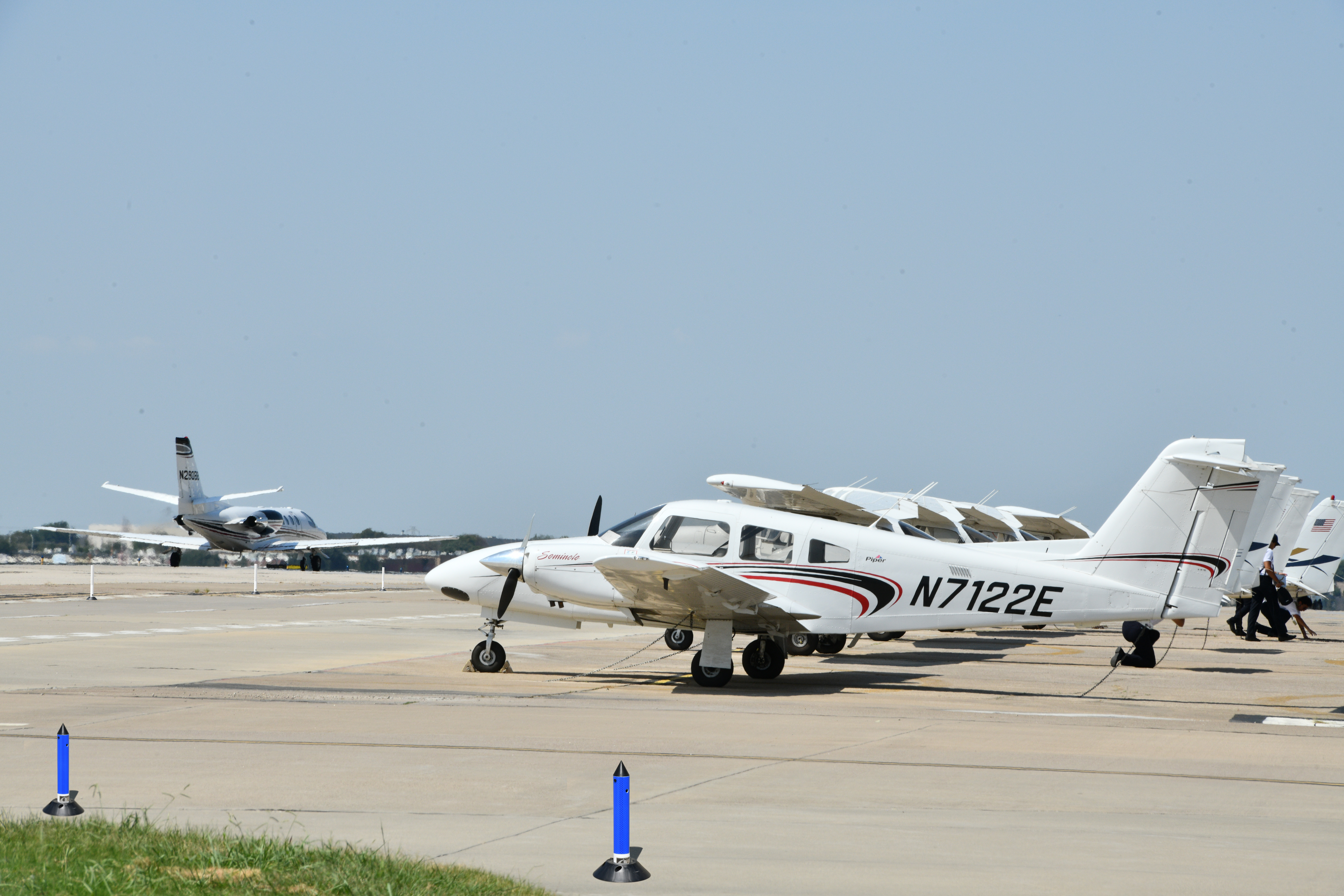

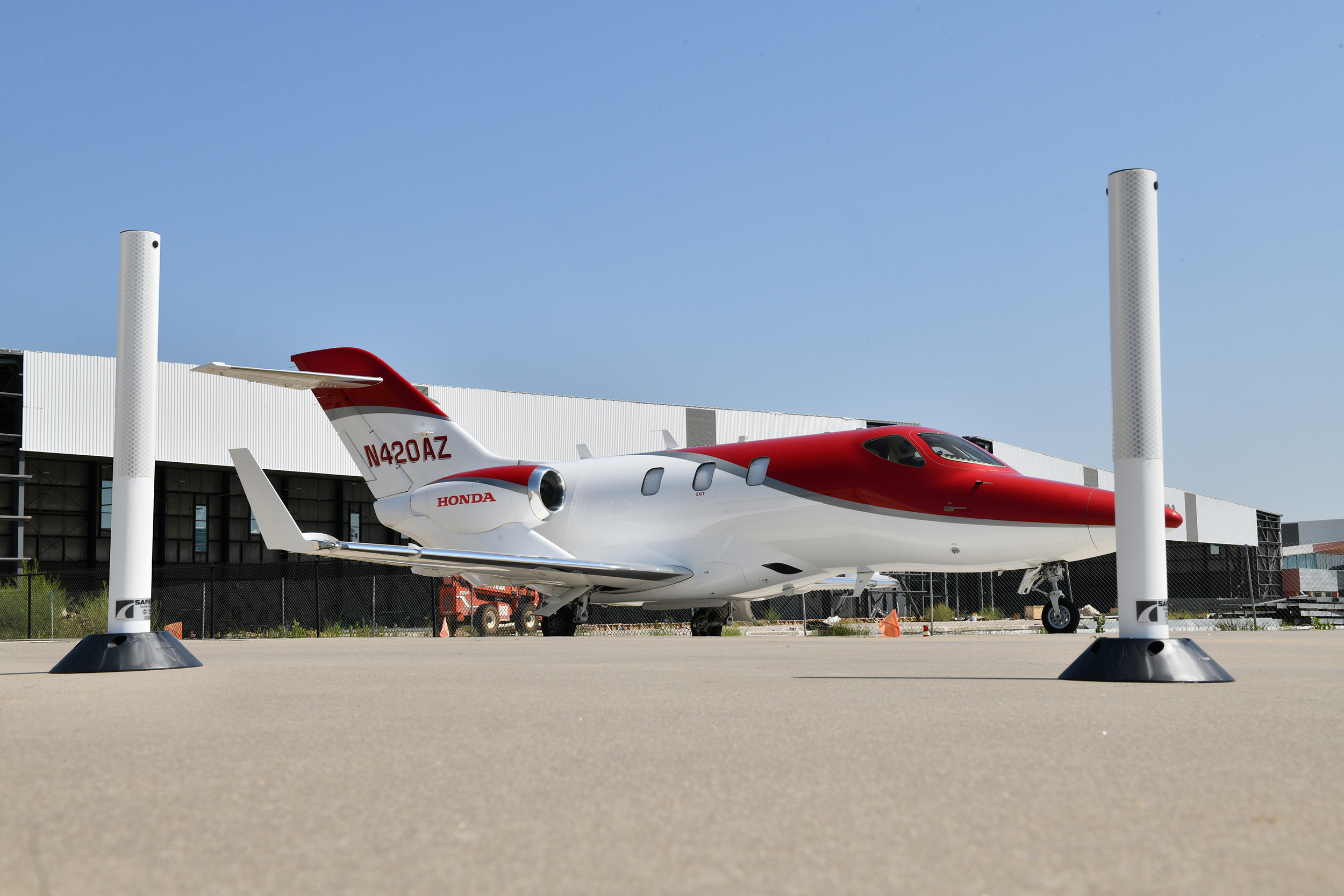

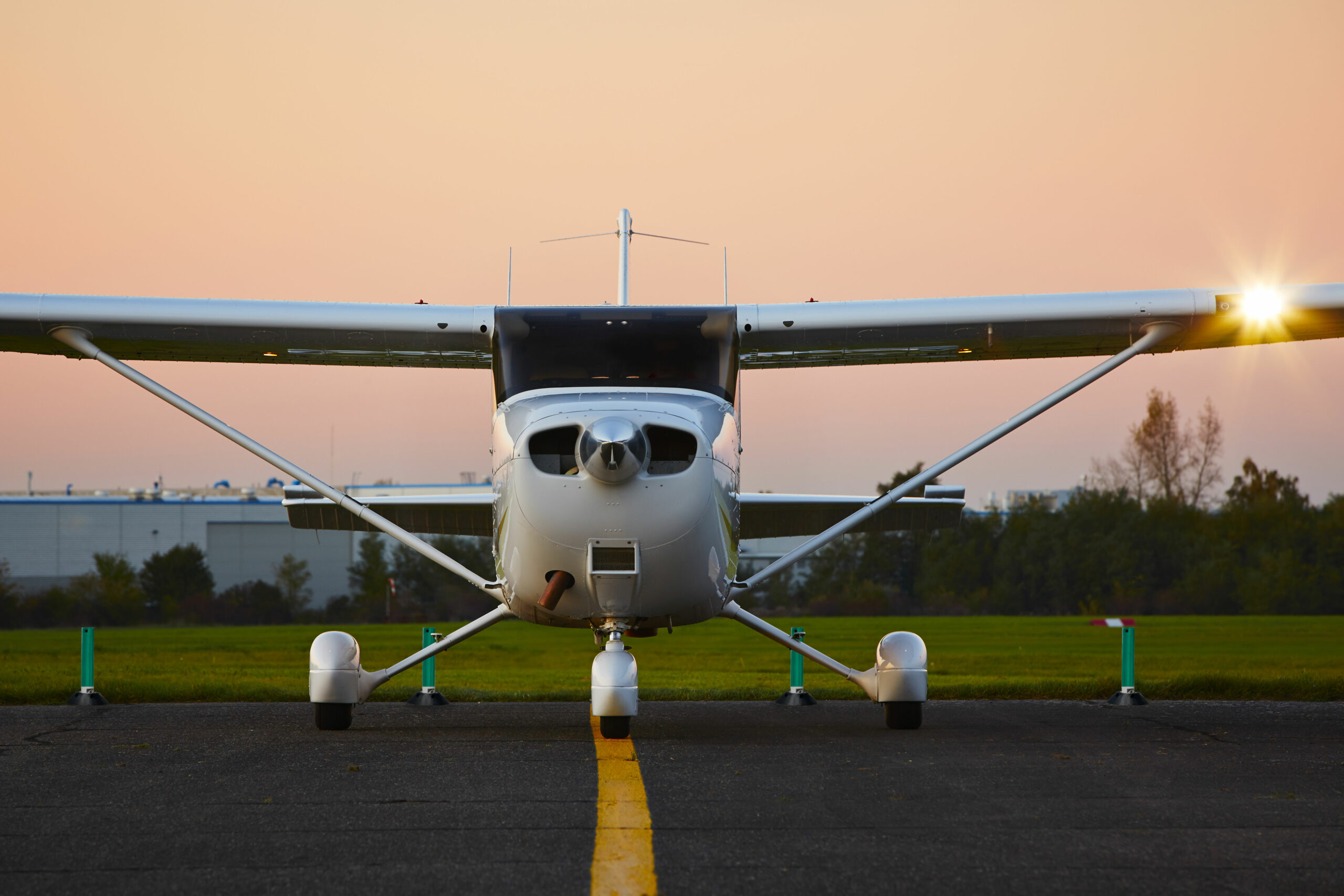

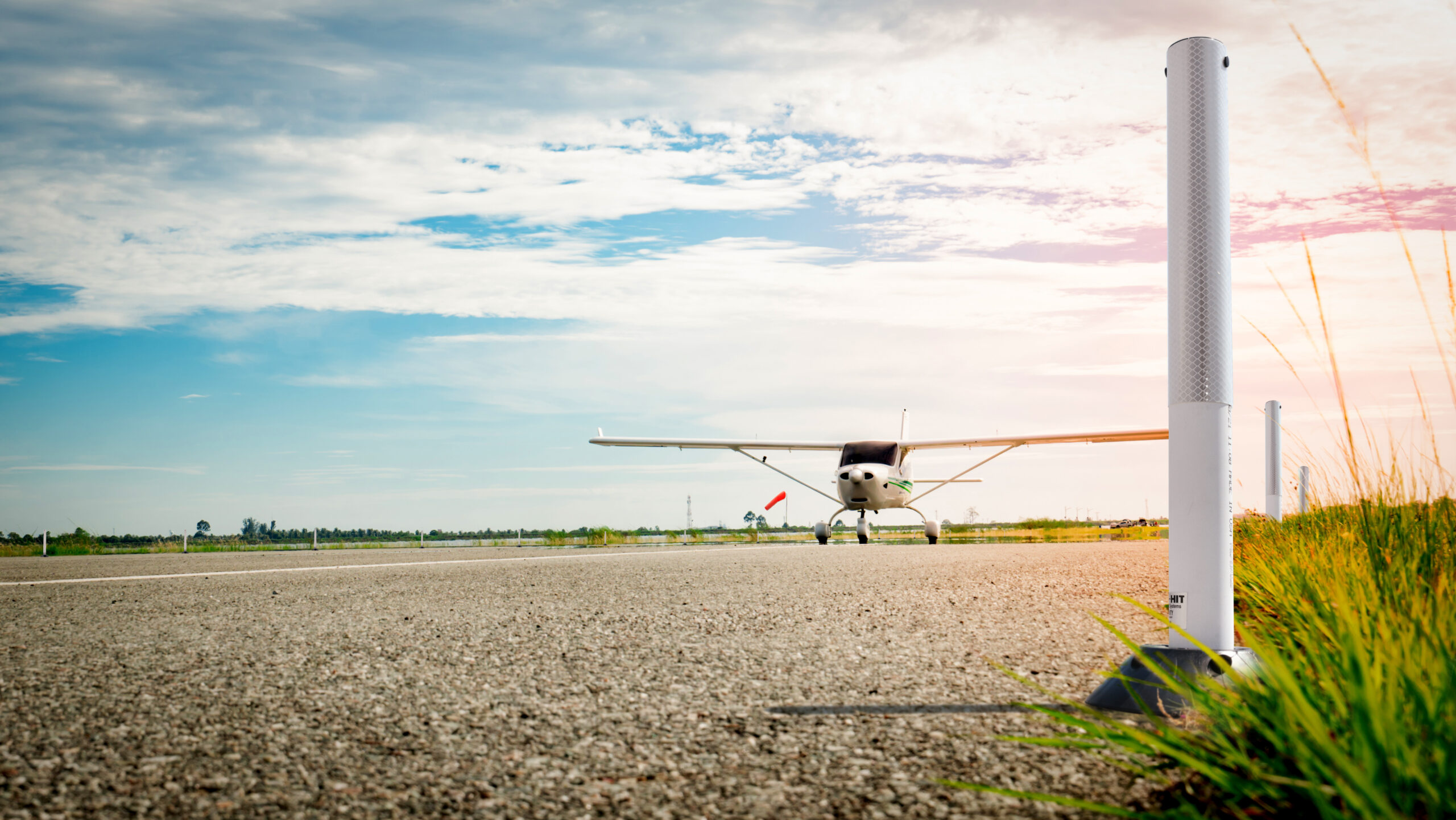

The Safe-Hit® Airport Marker consists of a co-extruded polyethylene tube with ultraviolet inhibitors, high-strength plastic fasteners, and Type IV retroreflective sheeting. It has been tested and certified by ETL to the Federal Aviation Administration’s (FAA) L-853 standards of the FAA Advisory Circular: 150/5345-39E. The Safe-Hit® Airport Marker is ideal for installations on airport taxiways, runway edges, ends, and thresholds.

Product Inquiry Form

Features

  • No above ground metal parts.
  • Round post design can provide increased visibility in up to 360° direction.

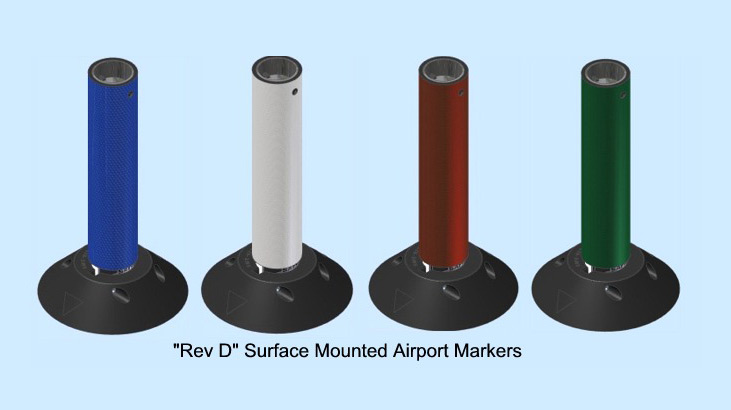

  • Surface mount or soil anchor versions available.
  • Lightweight, all plastic construction and components.
  • Tested and certified by ETL to the FAA’s L-853 standard and certified by ETL to the specifications of the FAA Advisory Circular: 150/5345-39E.

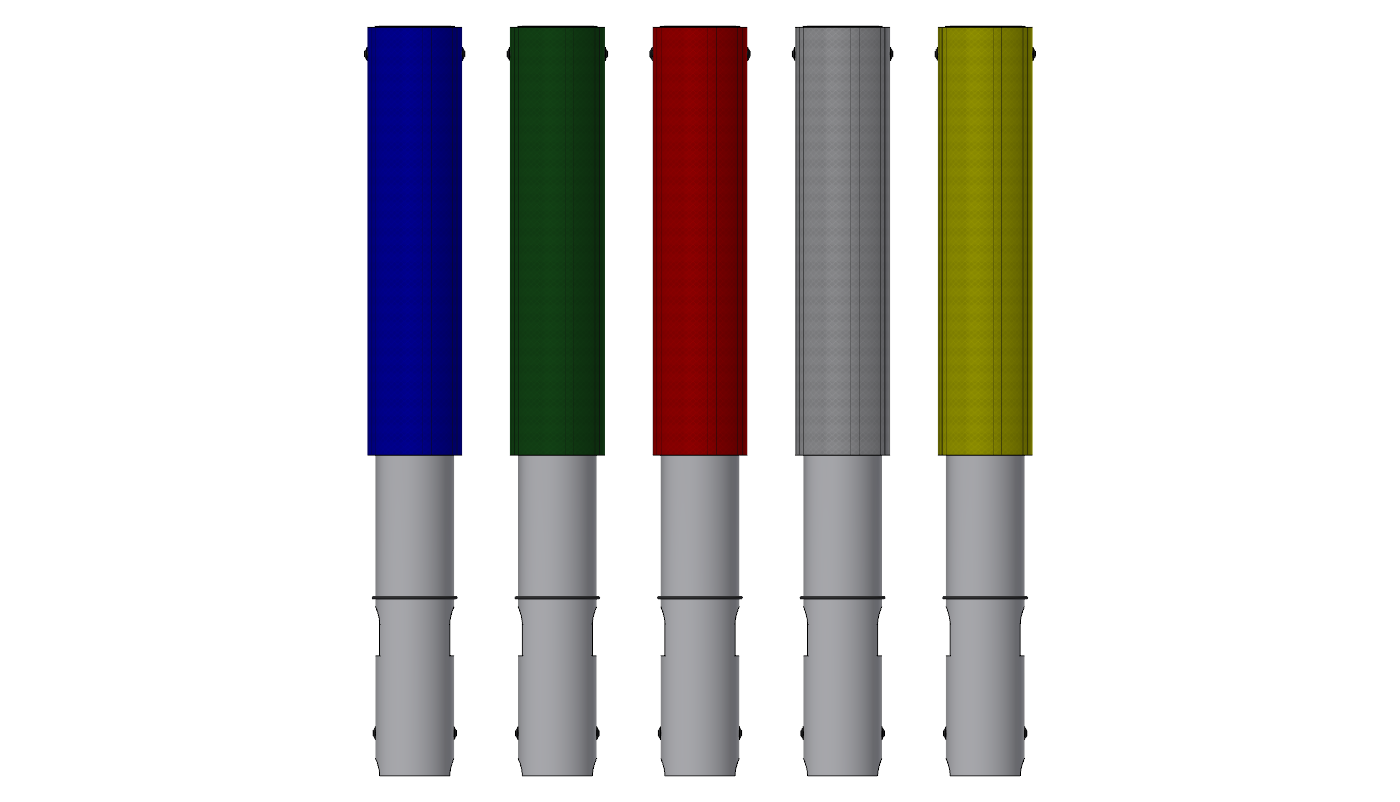

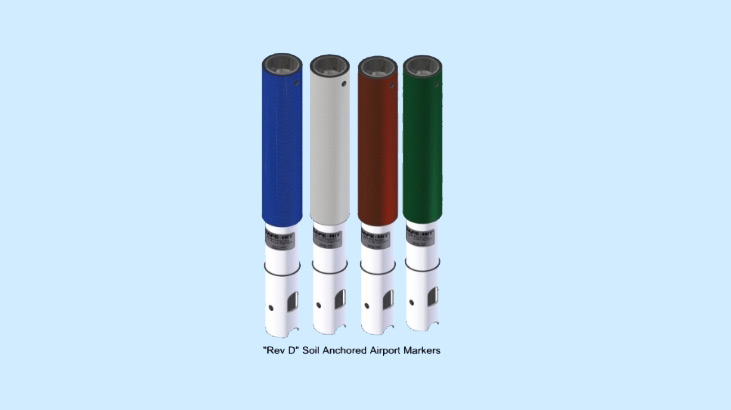

  • Corrosion-resistant soil anchor with integrated locking tabs.

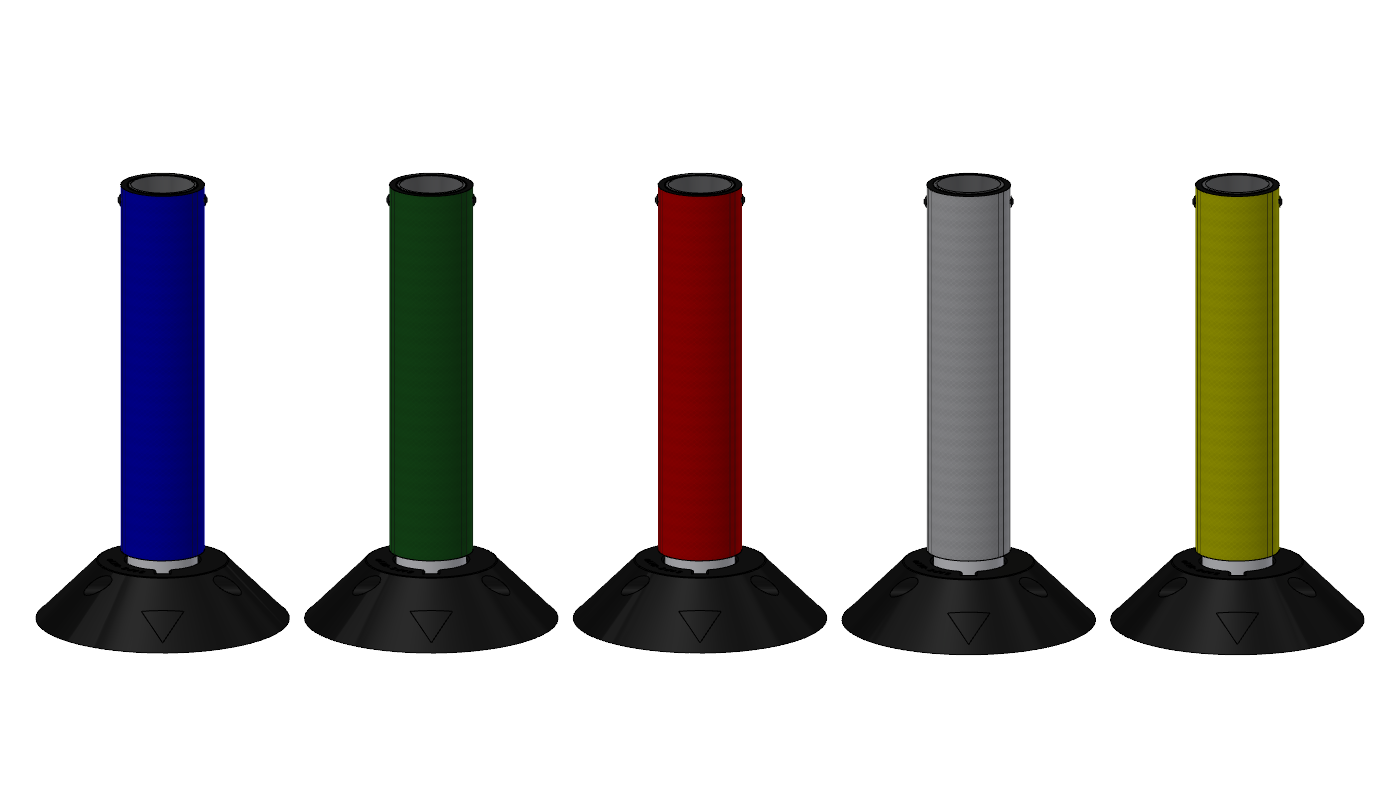

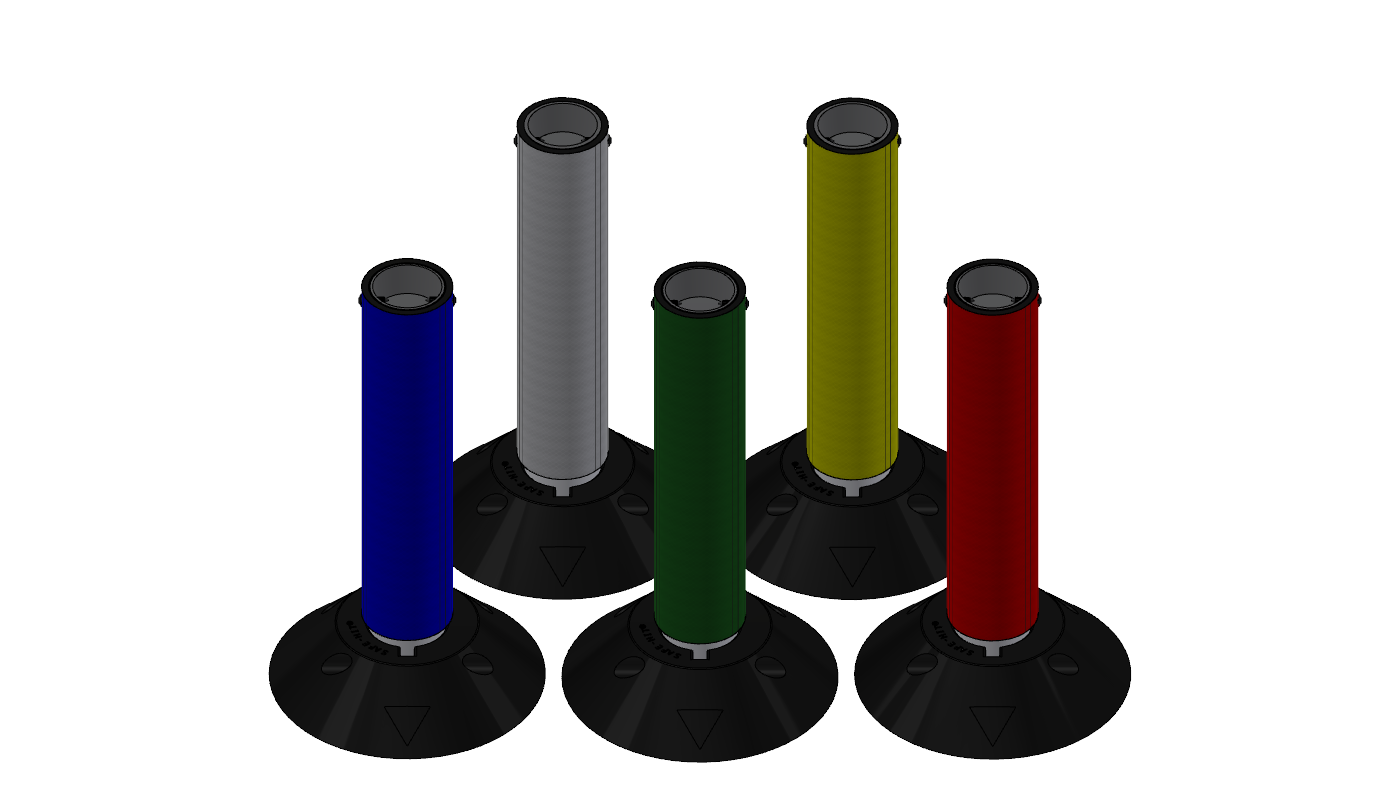

  • Reflective color choices of blue, red, green, white, and yellow.
  • Post color choices of white, light gray, dark gray.

Assembly & Maintenance

  • Integrating locking tabs allow for quick post installation and replacement.
  • Debris inhibiting plastic cap.

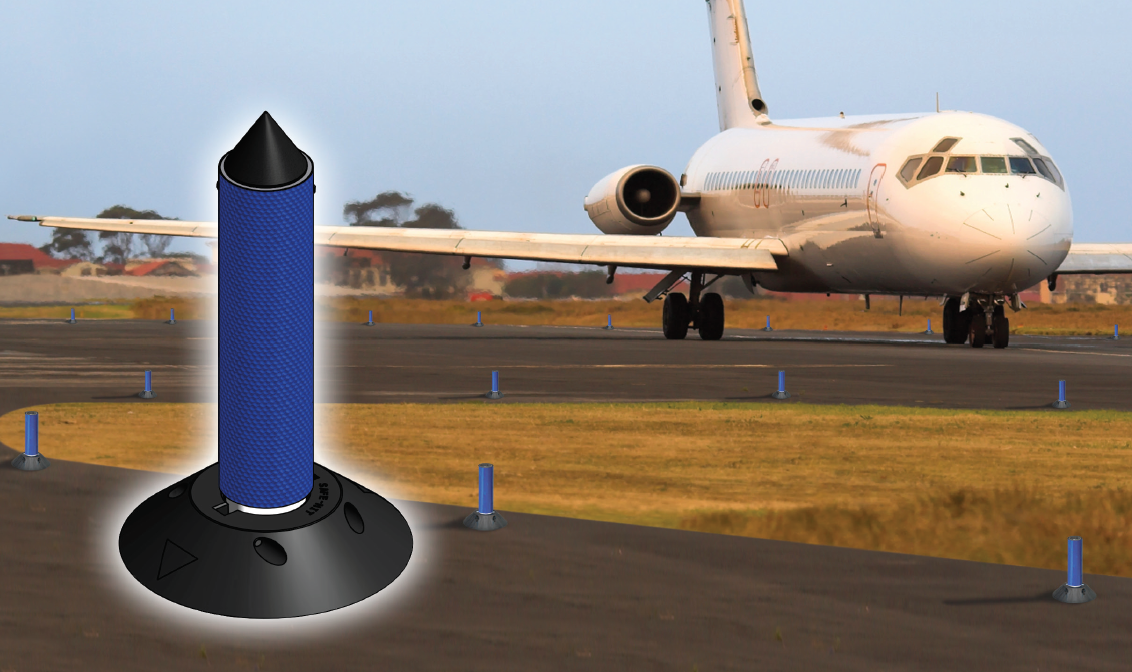

  • Optional anti-perch bird cap available.



Mounting and Anchor Options

  • Asphalt
  • Concrete
  • Soil

Specifications

  • 14″ (356 mm), 18″ (457 mm), 24″ (610 mm), 30″ (763 mm) Tall
  • 8″ (203 mm) Base Diameter

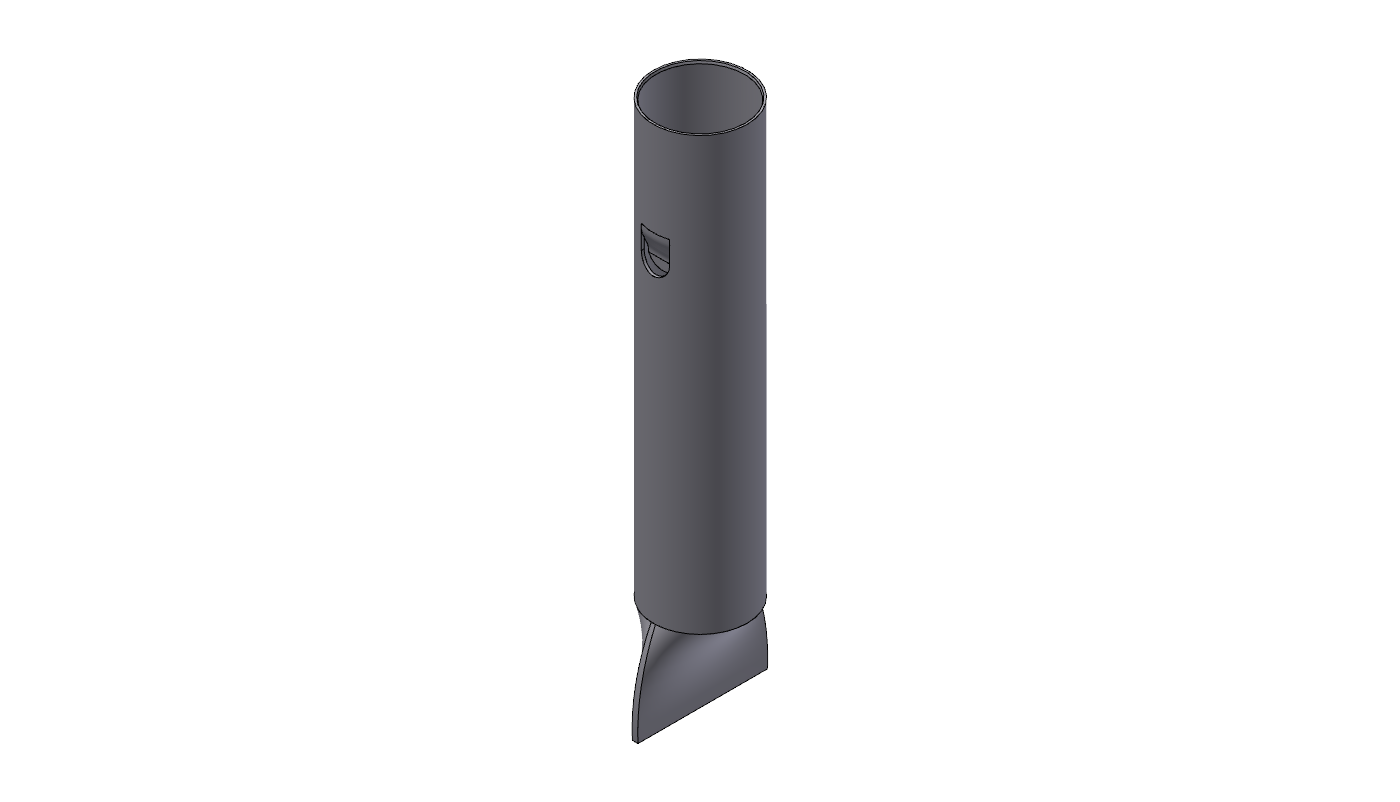

  • 18″ (457 mm) Standard Soil Anchor Length
  • 96 sq. Inches of ASTM D4956 Type IV Abrasion Resistant Reflective Sheeting





Product Images

Product Documents

PI Sheet

Safe-Hit® Airport Marker

Manuals

Safe-Hit® Surface Mount Placement Instructions
Safe-Hit® Soil Mount Placement Instructions

Specifications

Safe-Hit® Surface Mount L-853 Airport Marker General Product Specification
Safe-Hit® Soil Mount L-853 Airport Marker General Product Specification

Certification

ETL Certification Letter

Drawings

Safe-Hit® L-853 Airport Marker Surface Mount
Safe-Hit® L-853 Airport Marker Soil Mount

Brochures

Safe-Hit® Catalog
