HighwayGuard Barrier

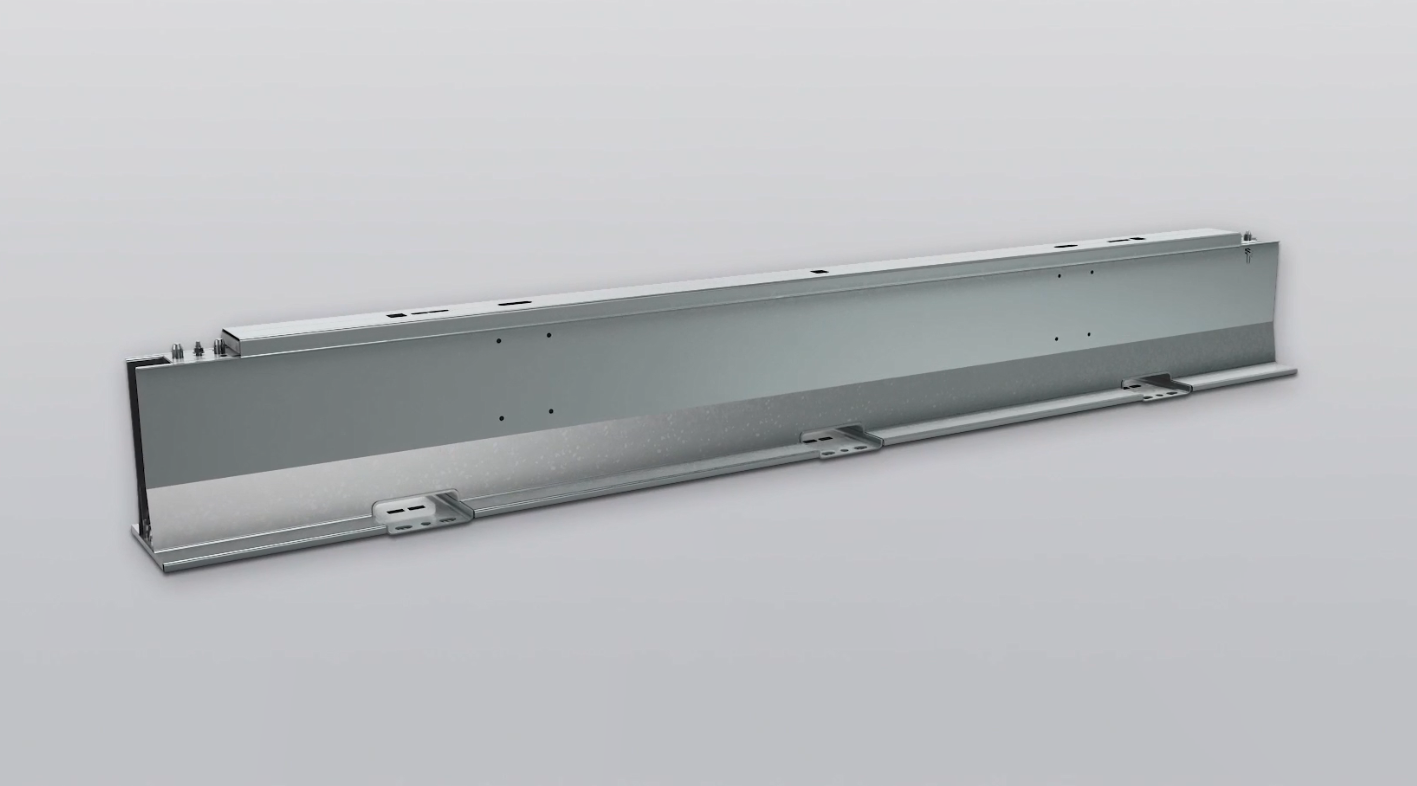

The HighwayGuard Barrier is a portable, longitudinal redirecting steel barrier made of lightweight, galvanized steel segments. It is tested to MASH 16 Test Level 3 and Test Level 4. The HighwayGuard Barrier can be used in work zone applications with other compatible end treatments such as the QuadGuard®.

Product Inquiry Form

Features

  • Deployable in either single 20′ segments or dual 40′ segments.

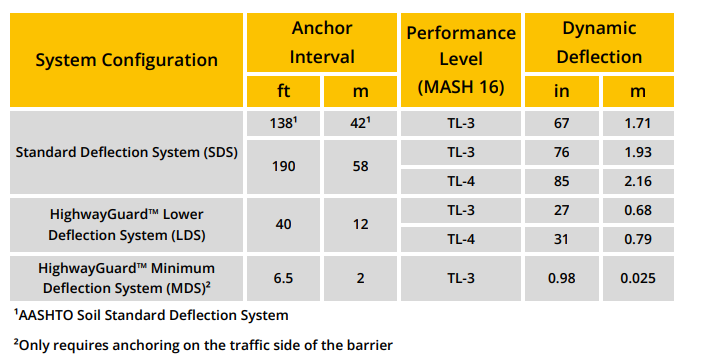

  • Standard or Lowest Deflection Systems available for applications where space is limited.

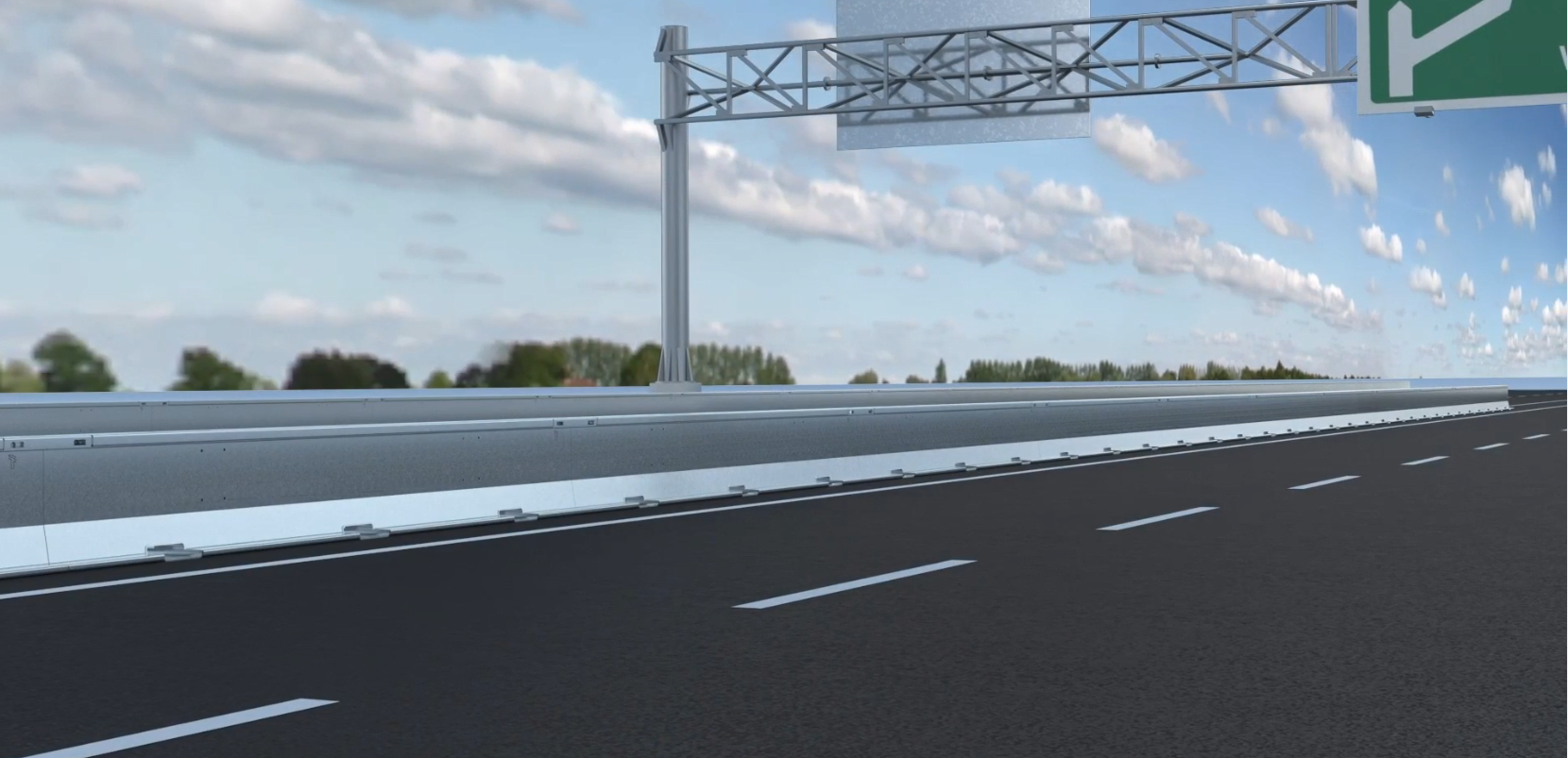

  • Designed to help reduce work zone congestion in high traffic areas by creating temporary lane shifts and work zone closures during off -peak or weekend hours.

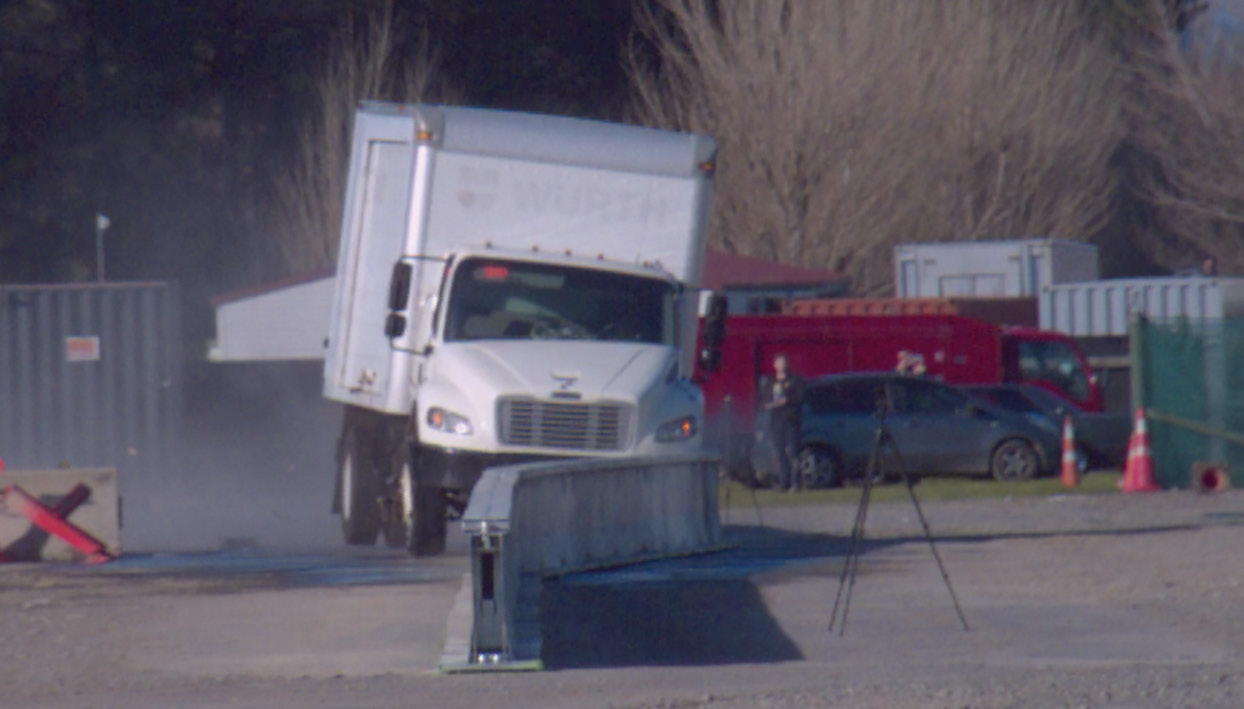

  • Tested to MASH 16 TL-3 and TL-4.

Assembly & Maintenance

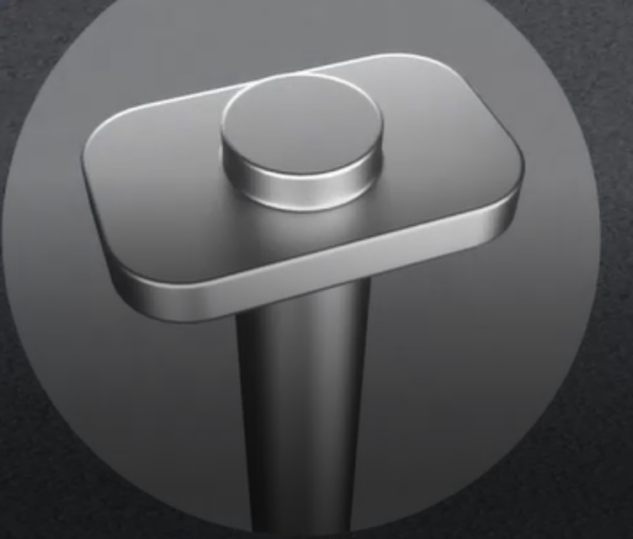

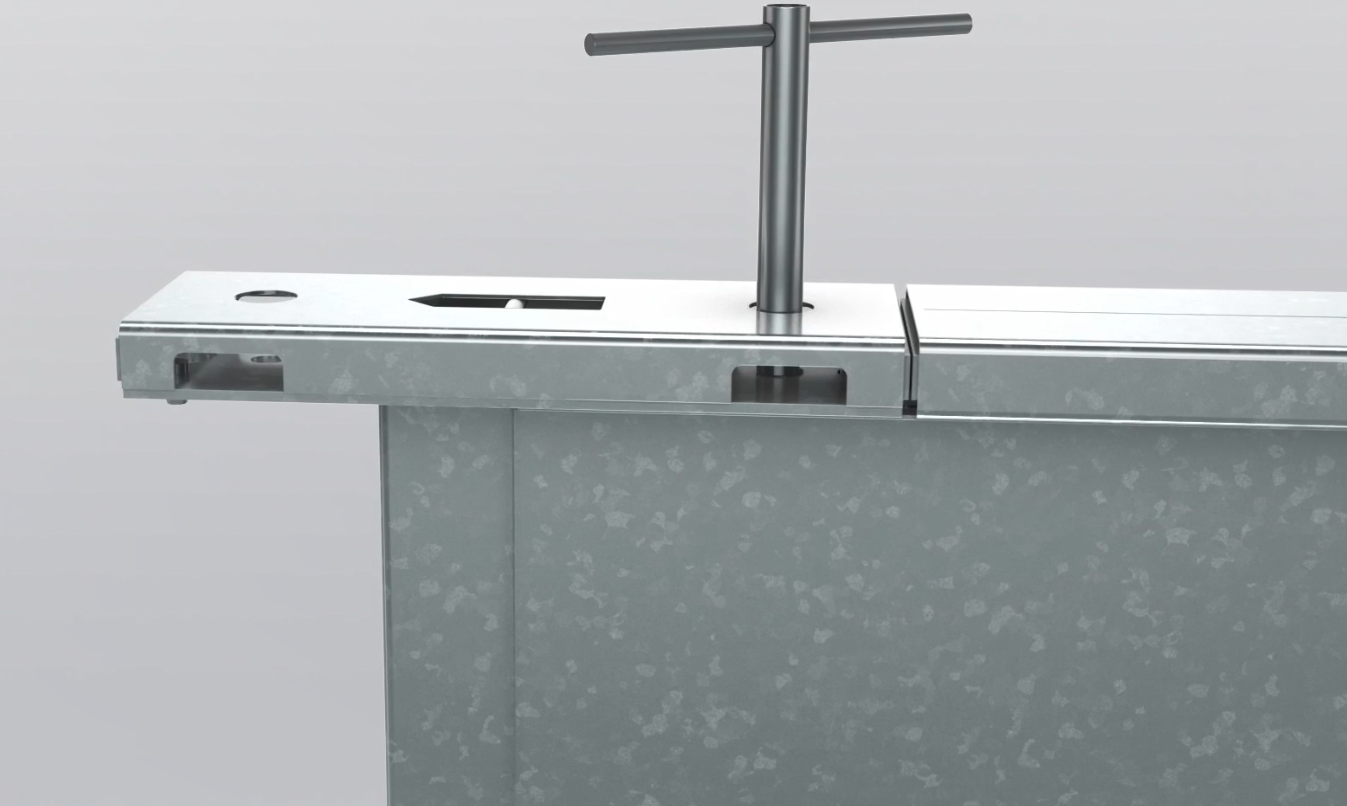

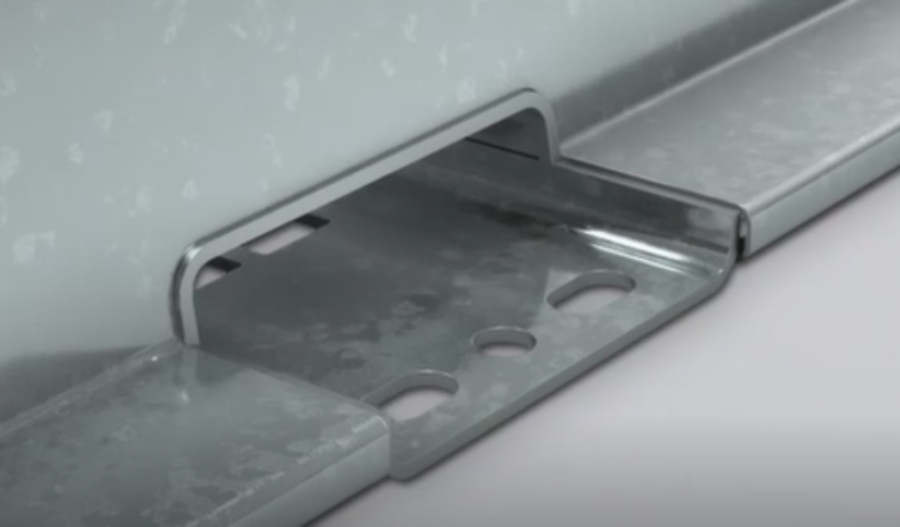

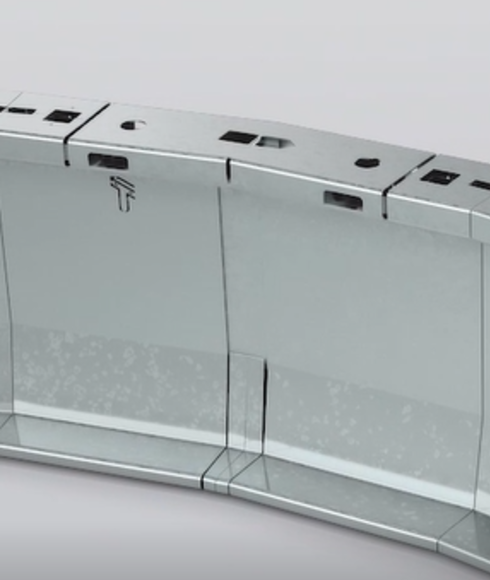

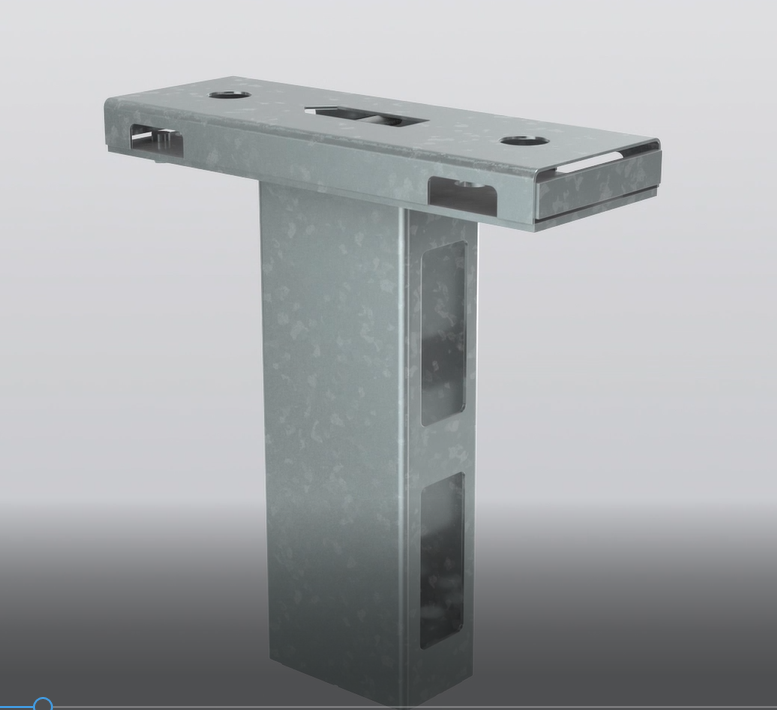

  • Symmetrical barrier sections with universal T-connectors allow for any section to connect
    to one another, in either direction, significantly lowering installation time and operational costs and reducing inventory.

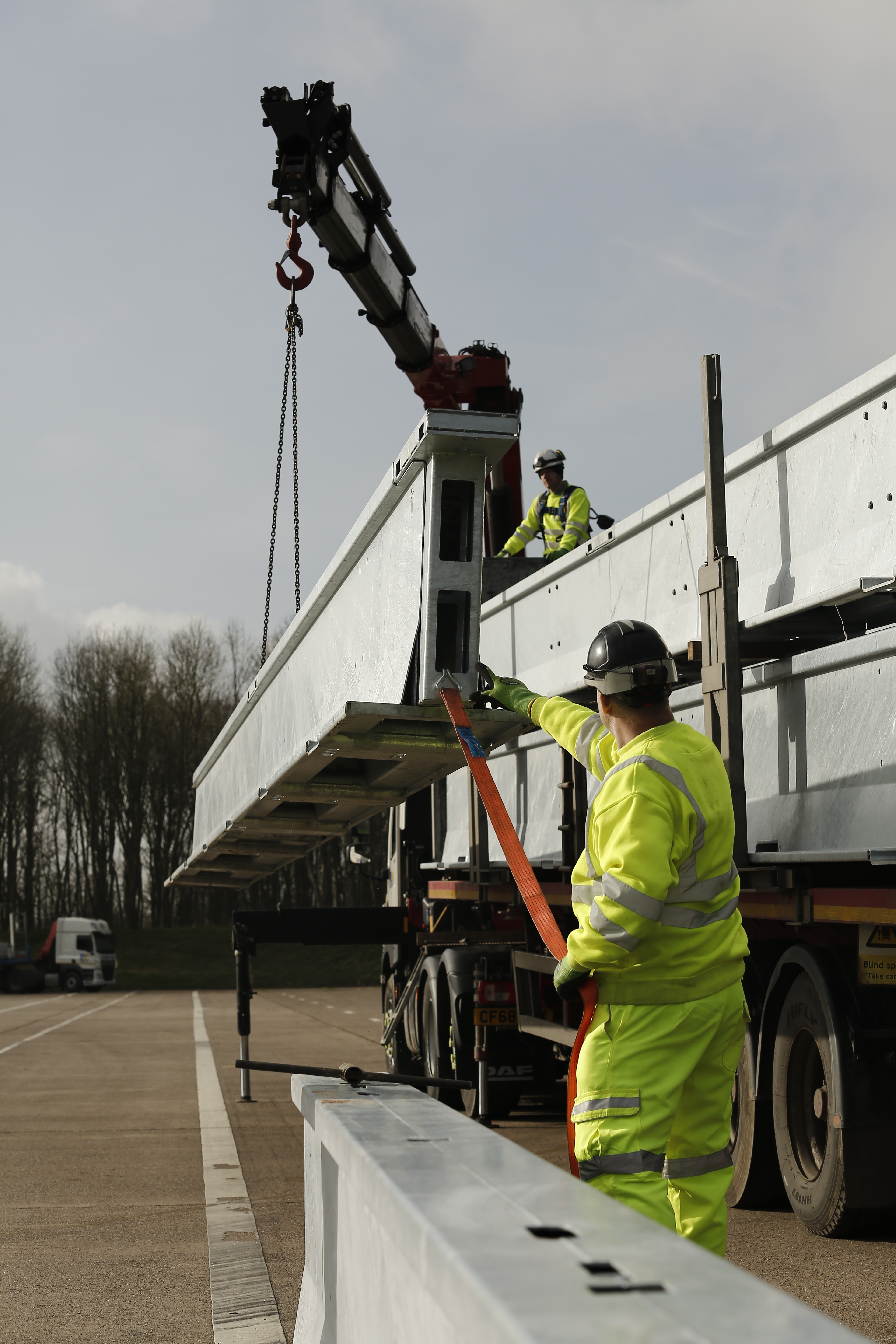

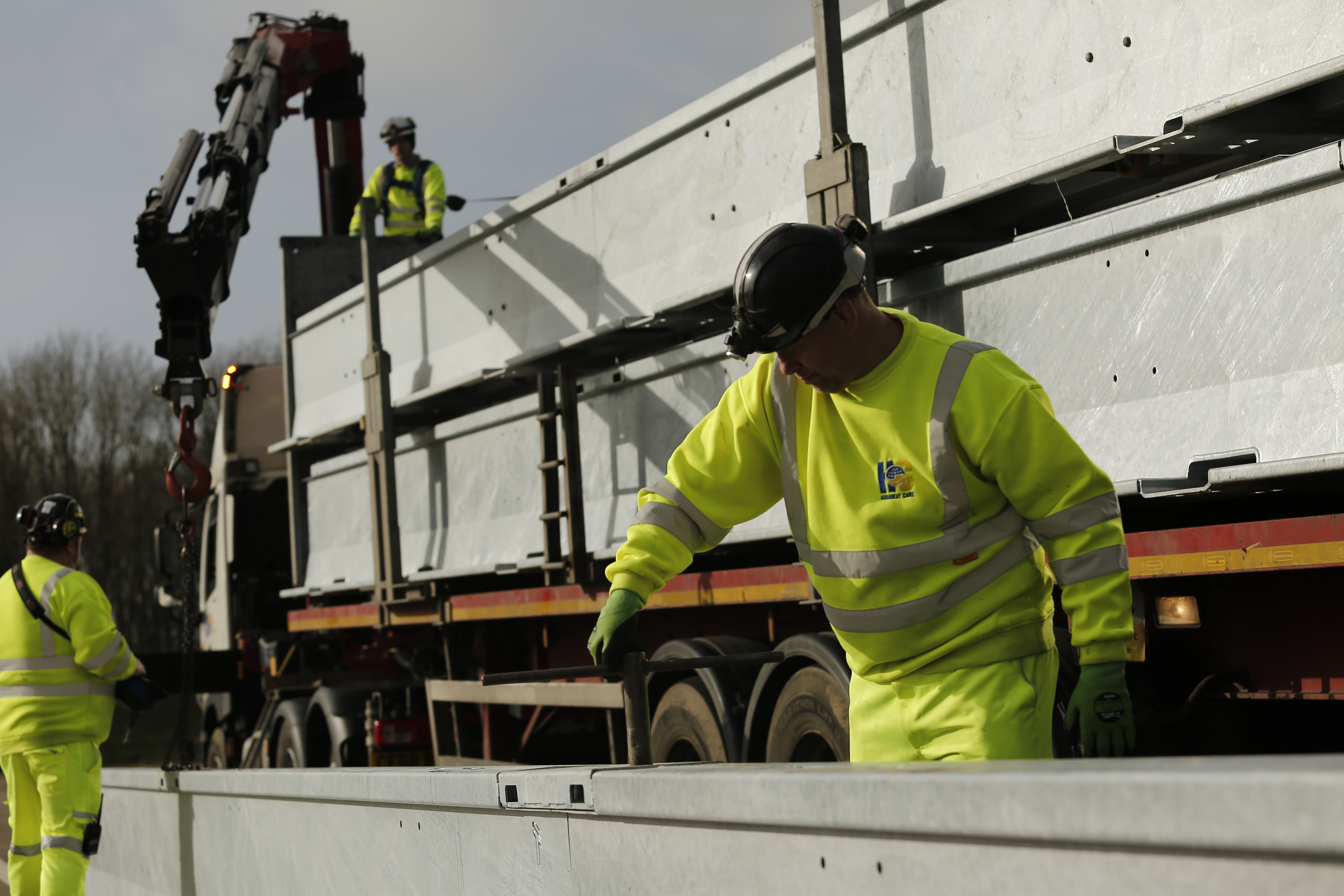

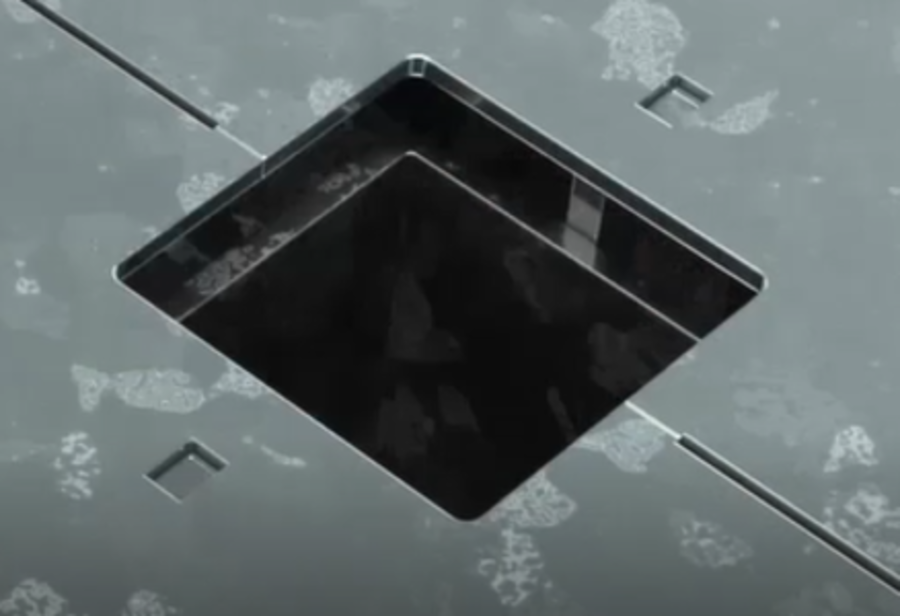

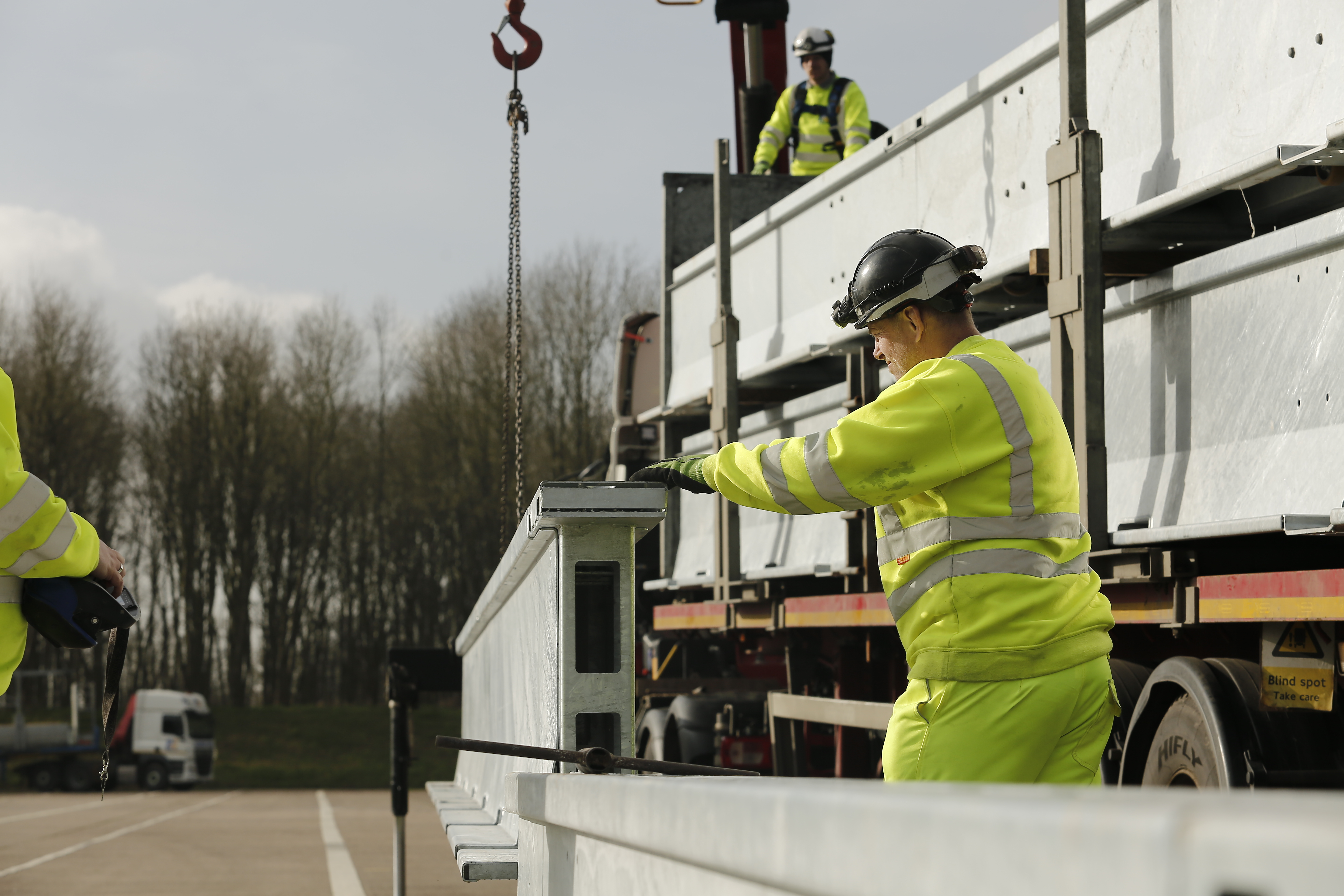

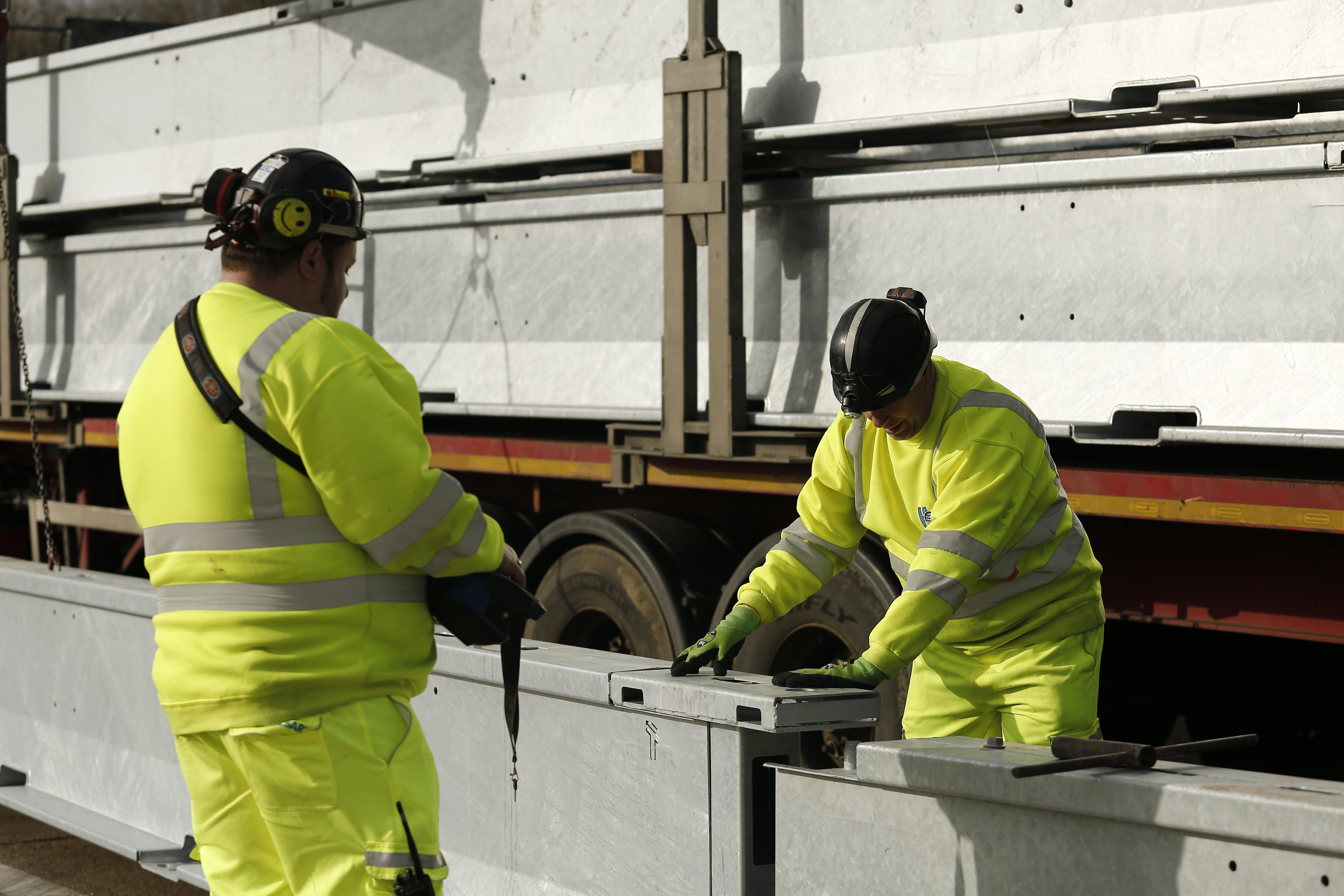

  • Multiple lifting points and grab options for minimizing labor and enhancing safety.
  • 708.5 LF (216 m) per standard flatbed with 48,000 lb (21,772 kg) maximum load capacity.

Specifications

  • Length: 19.68′ (6.00 m)
  • Height: 31.50′ (0.80 m)
  • Width: 21.25″ (0.54 m)
  • Module Weight: 1217 lbs. (552 kg)
  • T-Connector Weight: 95 lbs. (43 kg)
  • System Weight: 62 lb/ft (99 kg/m)

Product Documents

PI Sheet

HighwayGuard Barrier Manual

Manual

HighwayGuard Barrier Manual
