Euro-ET®

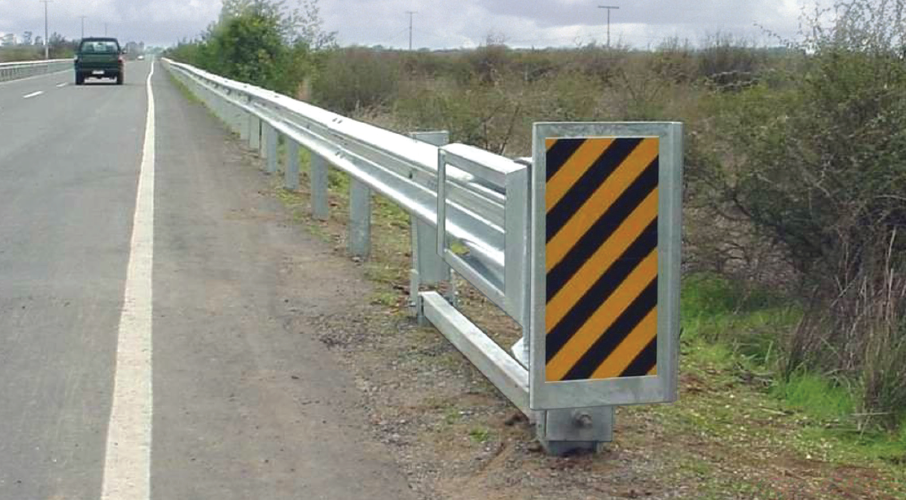

The Euro-ET® is an energy absorbing W-beam barrier end treatment. The European version of the ET Plus® is tested to European ENV 1317-4 (P4) criteria and designed to European highway specifications.

Product Inquiry Form


Features

  • Tested to European ENV 1317-4 110 km/h (P4).
  • Impact Severity Class A (ASI ≤1.0).
  • Exit Box rating Z1.
  • Galvanized, all-steel construction for durability.
  • Tall, narrow extruder head.



Euro-ET was the first European guardrail end terminal tested to Impact Severity Class A (ASI ≤1.0) category for all tests.

Assembly & Maintenance

  • Lightweight Euro-ET® head designed to help facilitate installation and repair.
  • Euro-ET® head is potentially reusable after an impact within ENV 1317-4 (P4) crash test standards.*
  • Hinged Breakaway Posts (HBA®) reset after end-on impacts.
  • Does not use concrete footings.
  • Median (central reserve) or shoulder (verge) applications.





*After an impact, the product must be inspected and evaluated per the direction of the specifying roadway authority. The ultimate decision on reusability rests with the specifying roadway authority and/or state DOT.

Specifications

  • Length: 12 m
  • Hinged Breakaway Posts (HBA®) at Post #1 and #2
  • Standard C Posts at Posts #3 – #6
  • W-Beam Barriers: 4 m
  • Post Spacing: 2 m



Product Images

Product Documents

PI Sheet (coming soon)

Euro-ET®

Manuals (coming soon)

Euro-ET® Product Description Assembly Manual
