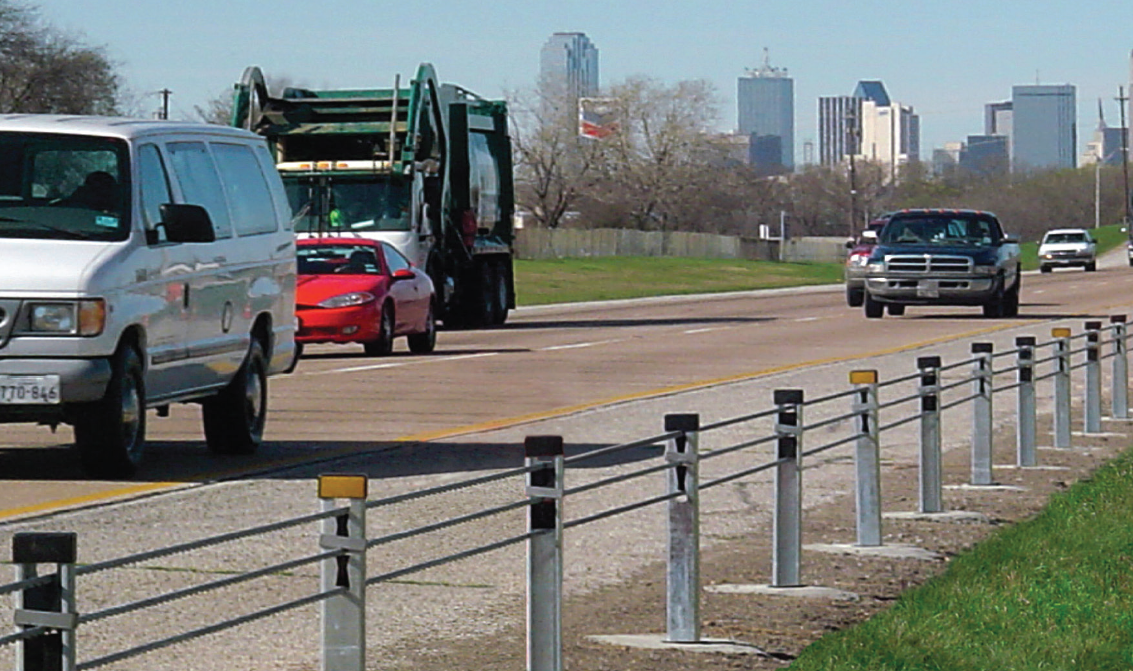

CASS® C-Channel Cable

The CASS® C-Channel cable barrier system assists in redirecting errant vehicles that would otherwise traverse the median of a roadway. The post employs a unique wave-shaped slot, which works in tandem with a strategically positioned, widened cable spread designed to help restrain various types of vehicles that impact the system within NCHRP Report 350 crash test standards.

Product Inquiry Form

Features

  • Three-cable, high-tension system.
  • Pre-stretched (recommended) or standard cable options.
  • Wave-shaped slot designed to help lower deflections.
  • Aesthetically pleasing design.
  • Cables aligned within body of the post.



The slot and post are designed to help lower deflections as shown in crash tests by minimizing the length of unsupported cables. CASS® C-Channel is tested to NCHRP Report 350 Test Level 3, EN 1317-2, Class N2, H1 and H2, L1 and L2.

Assembly & Maintenance

  • Posts can be driven, placed in driven steel sleeves, or placed in steel sleeves set in concrete footings.
  • Pre-stretched and tensioned cables require once yearly maintenance.*
  • Cables available in convenient preassembled 1,000′ lengths (305 meters).
  • Does not use interwoven cables.



*After an impact, the product must be inspected and evaluated per the direction of the specifying roadway authority. The ultimate decision on reparability rests with the specifying roadway authority and/or state DOT.

Specifications

  • Pre-stretched (recommended) or Standard Cables: 3/4″ (19 mm)
  • C-Shaped Cable Post 2″ x 4″ x 8 ga (50 mm x 100 mm x 4 mm)
  • Post Spacing: 6’ 6″ (2 m) to 16’ 5″ (5 m)

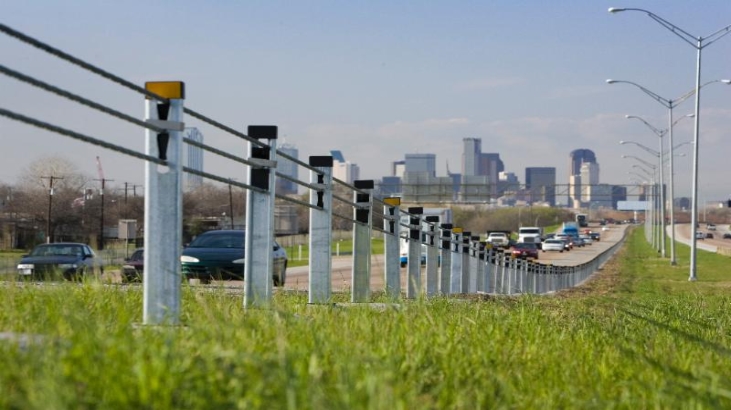

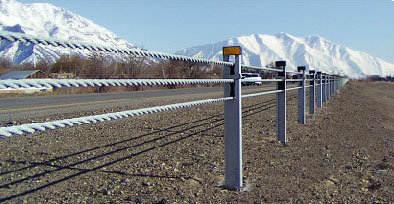

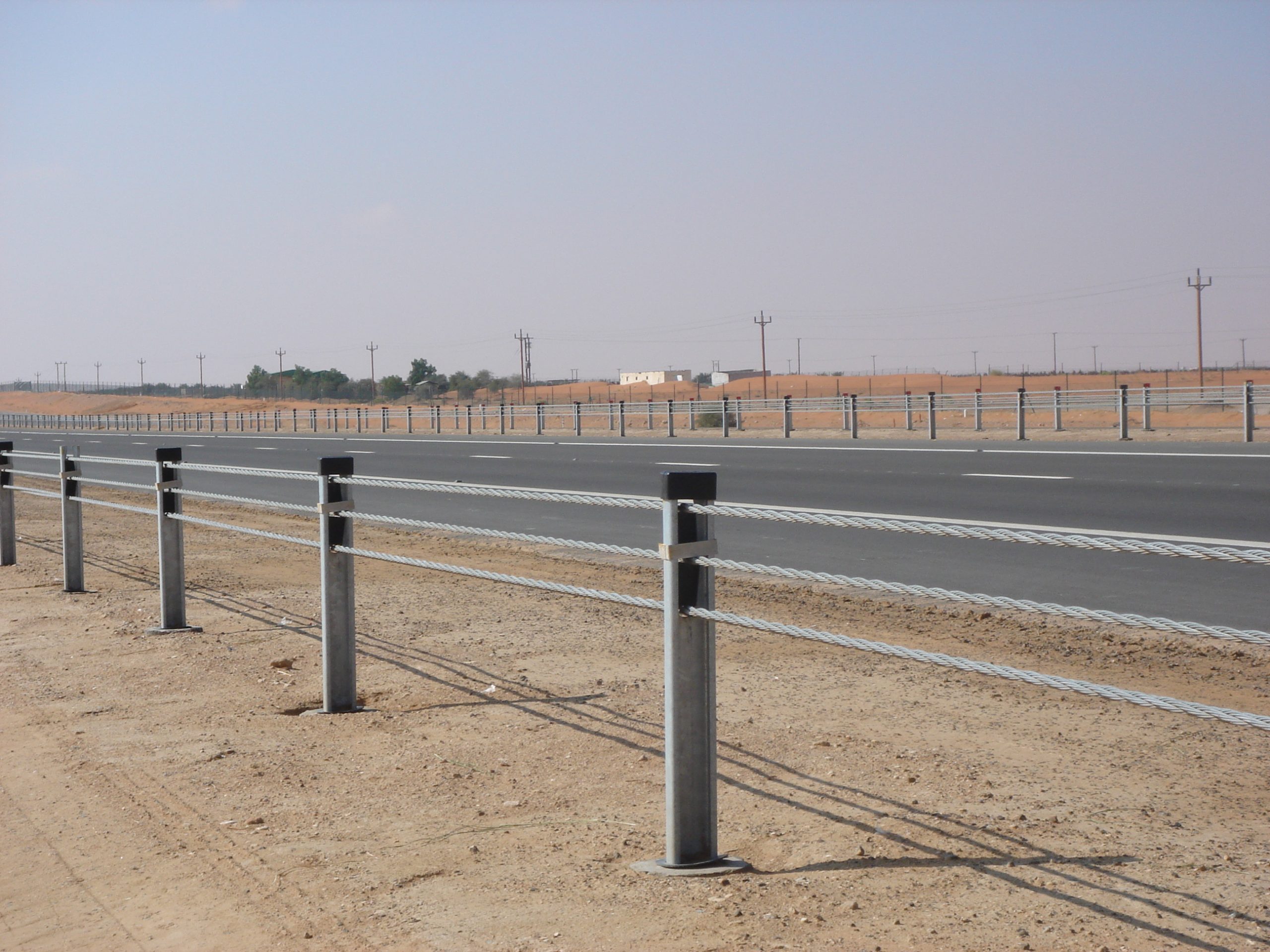

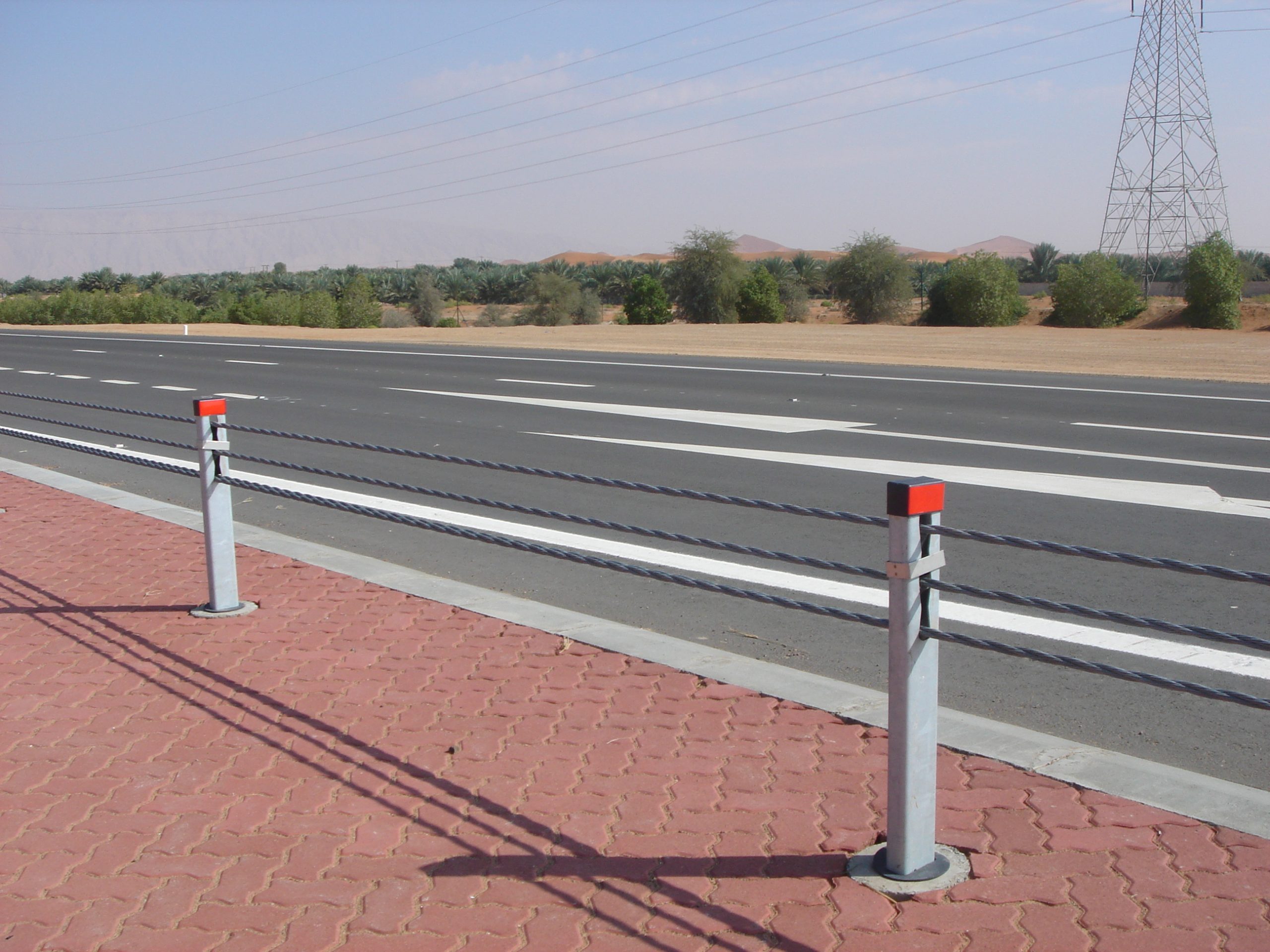

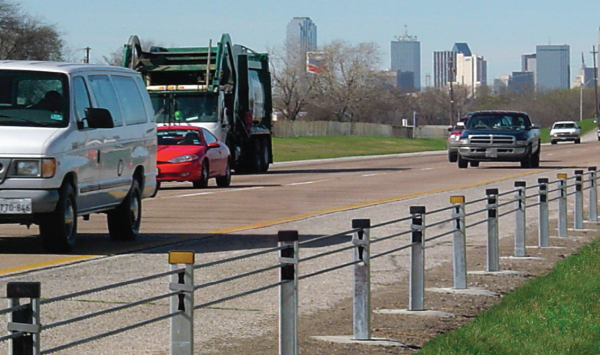

Product Images

Product Documents

PI Sheet

CASS® C-Channel Cable System

Manuals

CASS C-Channel Cables Safety System Product Description Assembly Manual
