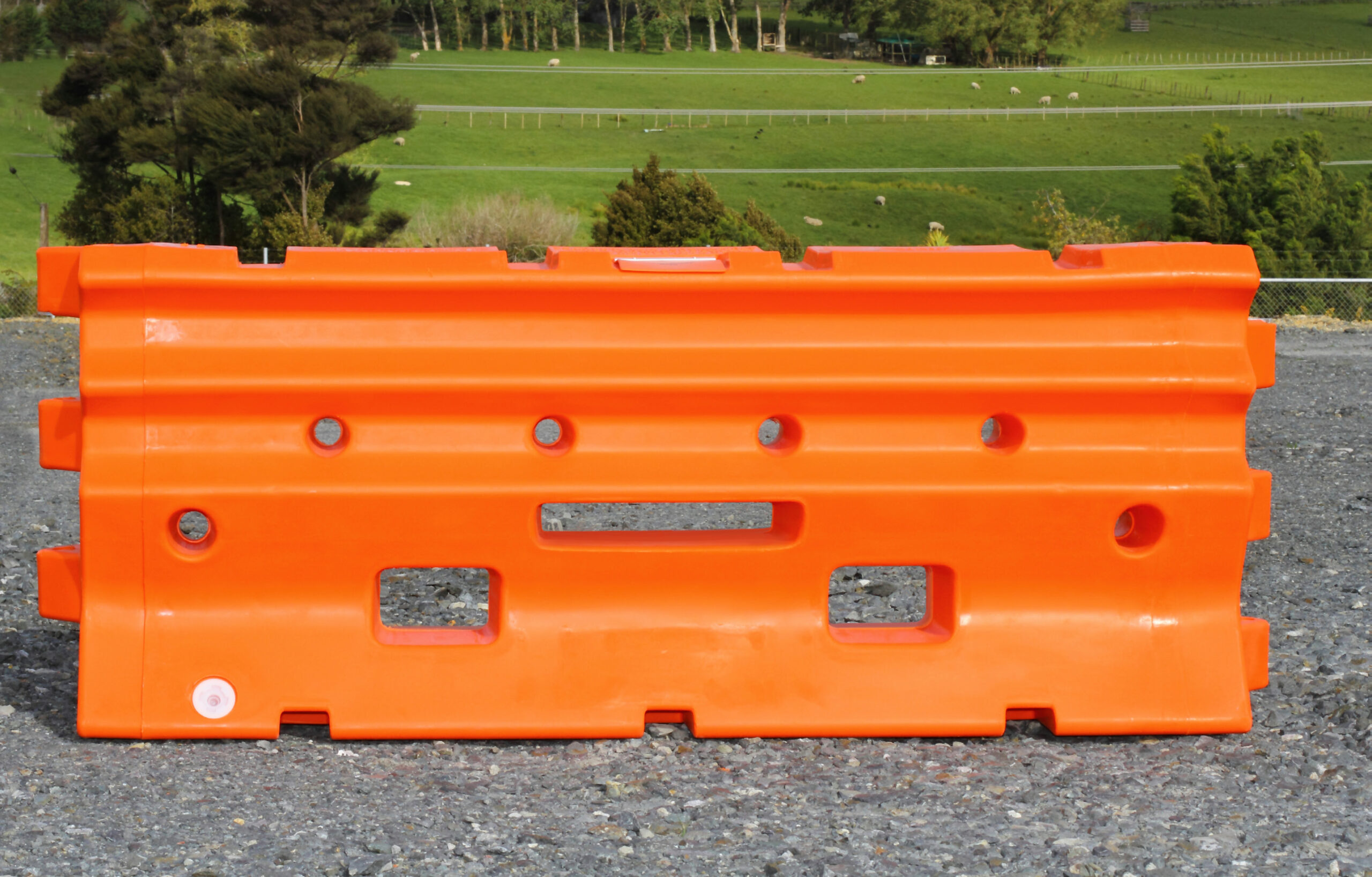

ArmorZone® TL-2 Water-Filled Barrier

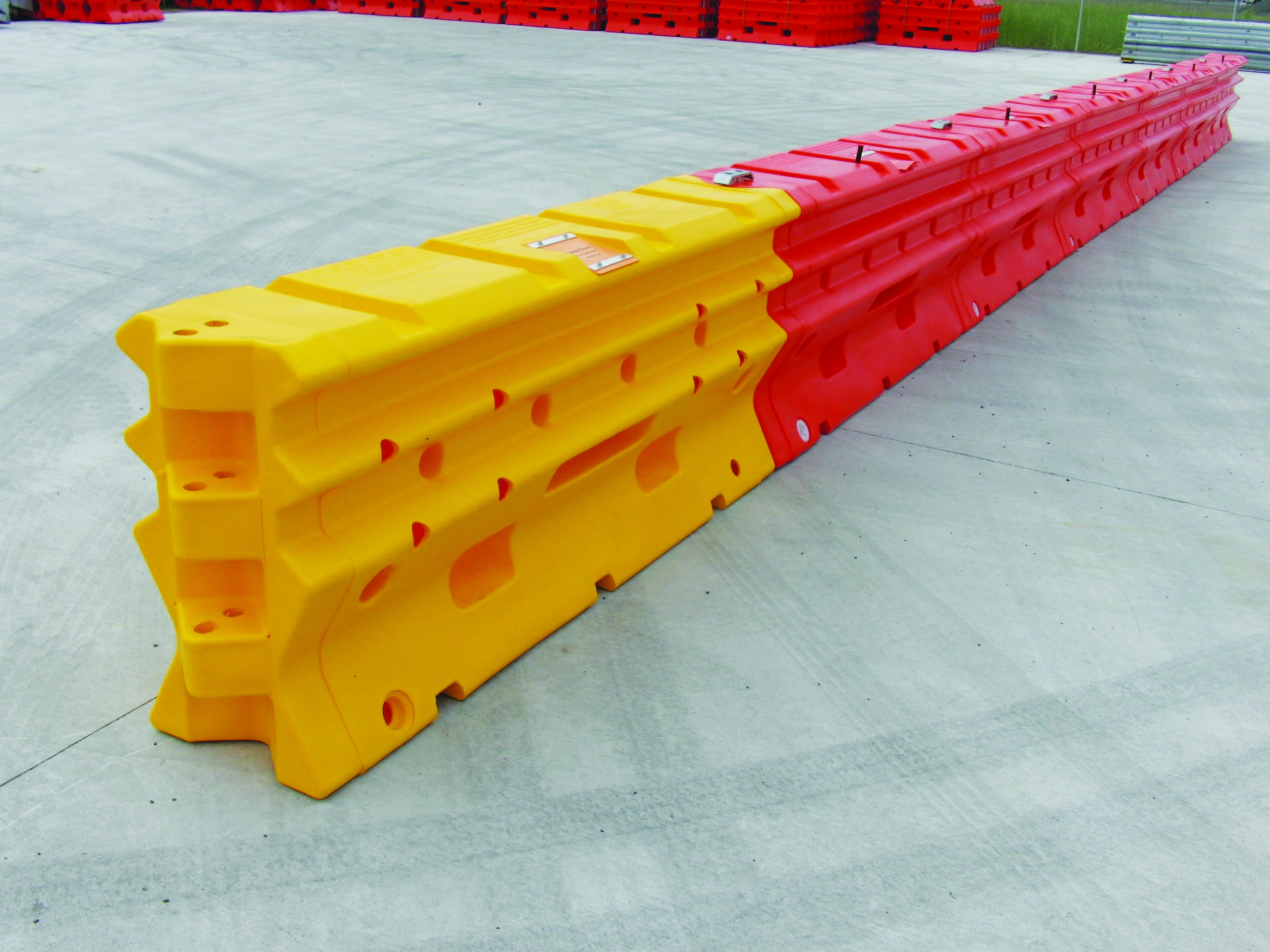

The ArmorZone® TL-2 is a portable, temporary, high-performance plastic water-filled barrier for redirective applications. The barrier system consists of interlocking 6′ 7″ (2 m) barrier sections made of high-performance polyethylene plastic and galvanized steel connecting pins. The ArmorZone® is tested to MASH Test Level 2.

Product Inquiry Form


  • MASH TL-2 work zone barrier protection.
  • Quick and easy install.
  • 78 barrier sections per flatbed truck.
  • 84 barrier sections per 40′ HC Container.
  • Environmentally friendly – 100% recyclable.
  • Stabilized HDPE modules may be reusable after light impacts.*
  • Water level indicator.
  • Fill hole screen prevents garbage build up within barrier.
  • Lightweight sections.
  • Convenient forklift ports and fill level indicator.


*After an impact, the product must be inspected and evaluated per the direction of the specifying roadway authority. The ultimate decision on reusability rests with the specifying roadway authority and/or state DOT.

Assembly & Maintenance


  • Unload
  • Position and pin

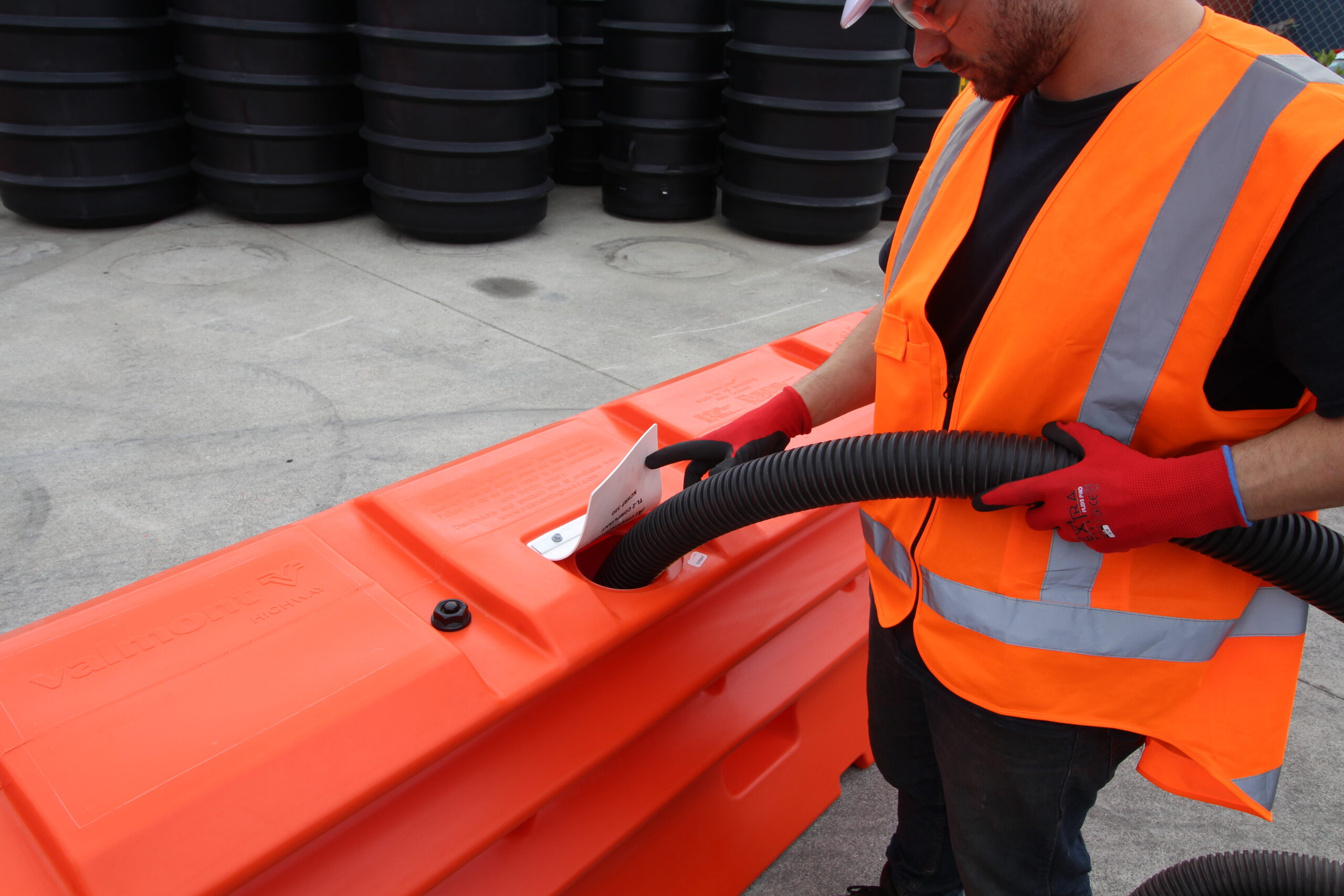

  • Fill with water



7′ 1″ (2.2 m) Total Length
•6′ 7″ (2 m) Effective Length
•18″ (450 mm) Wide
•34″ (860 mm) High
•123 lbs. (56 kg) Empty Weight
•1,093 lbs. (496 kg) Ballasted Weight
•116 gal. (440 L) Ballast Capacity
•25 Section Minimum Deployment Length
