Vulcan® Barrier

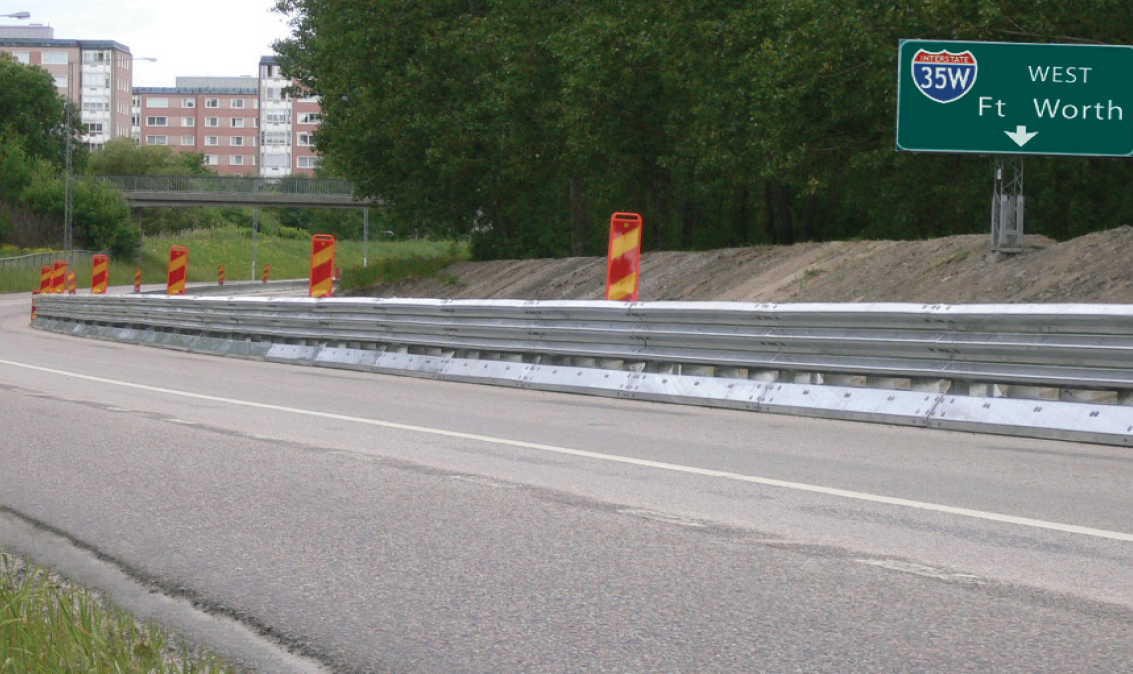

The Vulcan® is a portable, longitudinal redirecting steel barrier made of lightweight, galvanized steel segments. It is tested to NCHRP Report 350 Test Level 3 and Test Level 4, and EN 1317 H2 and N2. The Vulcan® Barrier can be used in permanent and work zone applications with other compatible end treatments such as the QuadGuard®, QUEST®, TRACC®, or ACZ-350®.

Product Inquiry Form

Features

  • Can be deployed with multiple anchoring configurations, as a gate or free standing.
  • Designed to help reduce work zone congestion in high traffic areas by creating temporary lane shifts and work zone closures during off-peak or weekend hours.
  • Can be used as a temporary or permanent median or roadside longitudinal barrier.

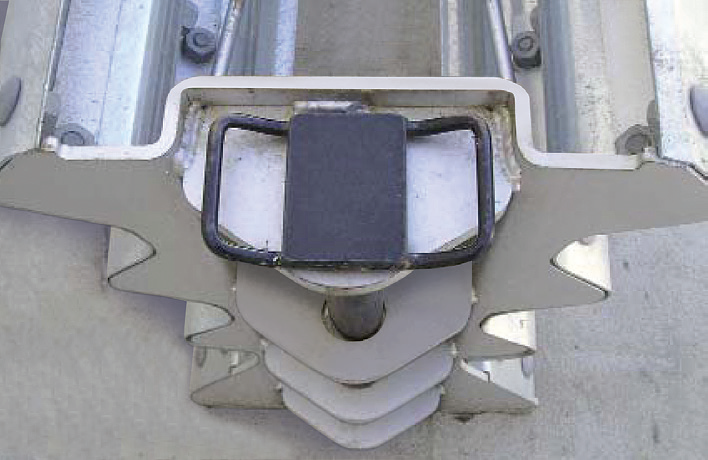

  • Vertical steel pivot pin interlinks each module.
  • Optional wheels and jacks for more efficient transportation by hand or towing short distances with a vehicle.

Assembly & Maintenance

  • Lightweight, modular design for transportation of up to 480 linear feet of barrier per standard truckload.
  • Attachment to a skid steer or front-end loader allows the movement of one mile of Vulcan® Barrier approximately one lane-width in about 20 minutes.

Specifications

  • Typical 13′ 6″ (4 m) Long Segments
  • 39′ (12 m) Segments Also Available
  • 21.5″ Wide (546 mm)
  • 32″ High (813 mm)
  • 1,020 lbs. (460 kg)

Product Images

Product Documents

PI Sheet (coming soon)

Vulcan® Barrier

Manuals (coming soon)

Vulcan® Barrier Assembly Manual
Vulcan® Barrier System (CEN) Assembly Manual
