Safe-Hit® Glarescreen

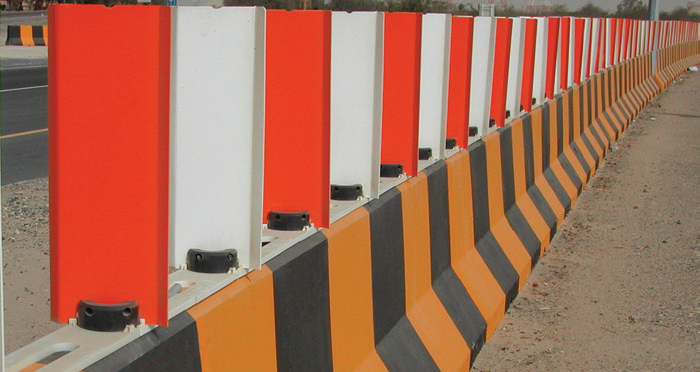

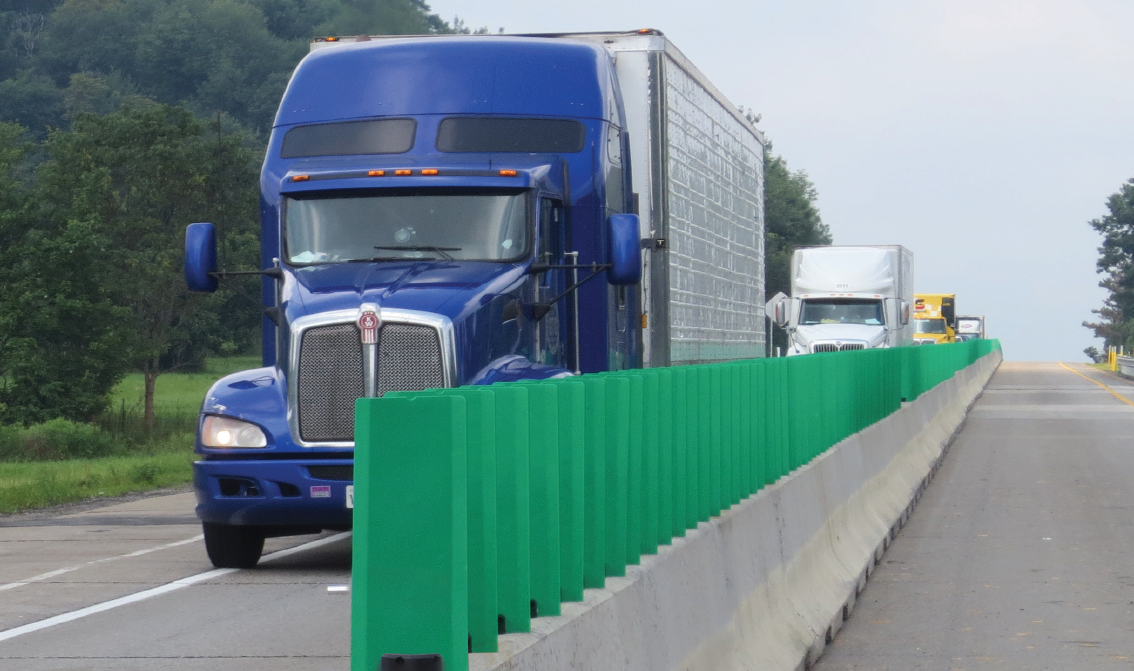

The Safe-Hit® Glarescreen is a reboundable vertical blade/paddle system that is used to delineate both temporary and permanent medians and block out headlight glare of oncoming traffic. Positioned on the top of median barriers, this delineator system helps to minimize traffic slowdowns in work zone areas.

Product Inquiry Form

Features

  • Blocks out headlight glare.
  • May serve as a delineator when reflective sheeting is added to provide visibility and traffic channelization.
  • Reboundable and durable. Designed to help withstand multiple impacts from overhanging loads.
  • Helps to reduce congestion in work zones by limiting cross-median visibility.
  • Versatile, modular design adapts to most sizes of temporary or permanent barrier.
  • Blade installation and replacement with two retaining pins instead of bolts or screws.
  • Removable blade allows access to both sides of highway for maintenance or emergency crews.
  • Ideally suited for construction work zones and curved roadways.
  • Less debris when impacted compared to fencing or plywood products.
  • Standard green color. Custom orange or white colors available.
  • Standard height 18″ (457 mm), 24″ (610 mm) and 30″ (762 mm).
  • Compact storage and shipping means more feet per delivered load.

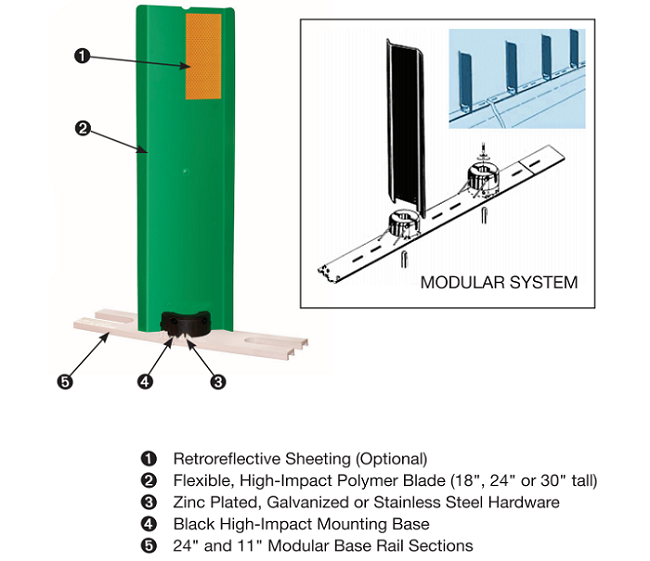

Blade & Base

Blade/Paddle

  • Green, orange & white
  • 9″ x 18″, 9″ x 24″ or 9″ x 30″
  • High-impact Polymer with Radius Corners

Mounting Base

  • 4-3/4″ Diameter x 1-7/8″ Tall
  • Black High-impact Polymer

Full Base Rail Section

  • 5-1/2″ x 24″ x 5/8″
  • White High-impact Polymer

Half Base Rail Section

  • 5-1/2″ x 11″ x 5/8″
