QUEST® CEN

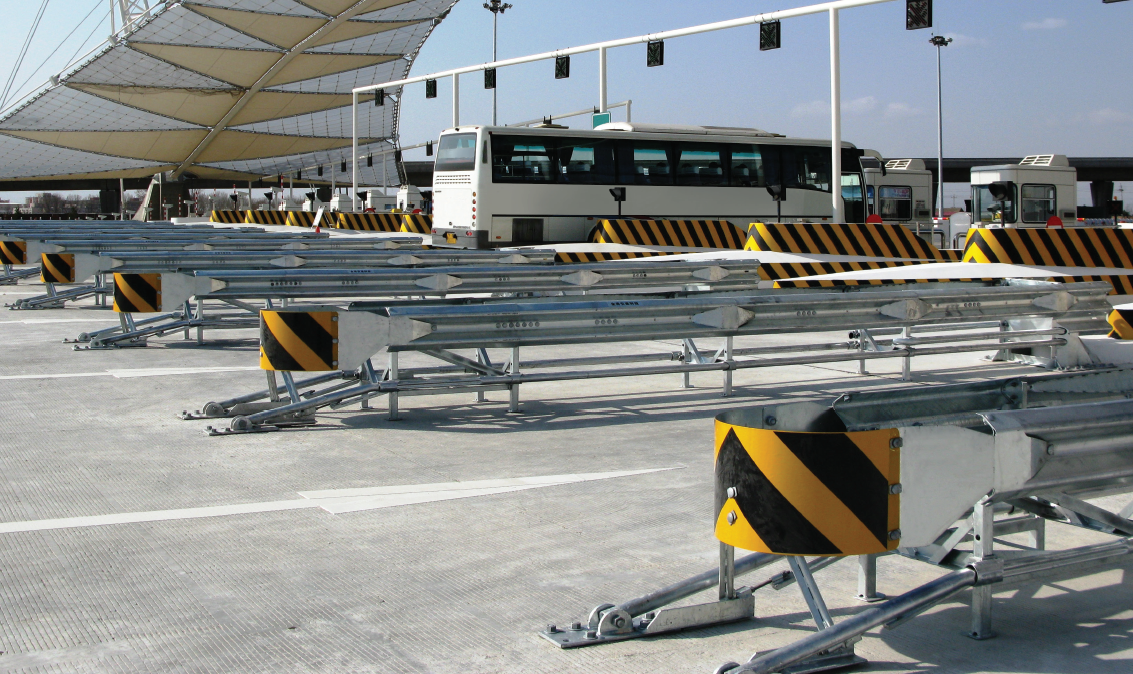

The QUEST® CEN is a redirective, bidirectional crash cushion that consists of a series of W-beam fender panels supported by diaphragms and features an integrated front trigger mechanism. The system is tested to EN 1317-3 110 km/h (P4), 100 km/h (P3) and 80 km/h (P2).

The QUEST® CEN crash cushion is CE marked and has been certified by an authorized EU Notified Body.

Product Inquiry Form


Features

  • Deployable for unidirectional or bidirectional applications.
  • Compact and lightweight design.
  • Freestanding backup.
  • Open frame design helps facilitate inspection and maintenance.
  • Exit Box rating Z1.

Assembly & Maintenance

  • Arrives assembled.
  • Multiple anchorage options.
  • Uses only 15 anchorage bolts.



Back-Up Structure and Attachments

Stand-alone or multiple connection panels available for:

  • New Jersey barrier
  • W-beam barrier
  • Thrie-beam barrier
  • Concrete median barrier

Specifications

Typical 110 km/h Unit

(Also Available in 100 km/h and 80 km/h Units)

  • Length: 8.27 m
  • Width: 610 mm
  • Weight: 677 kg

Product Images

Product Documents

PI Sheet (coming soon)

QUEST® CEN

Manuals (coming soon)

QUEST® CEN System Assembly Manual
QUEST® CEN Anchoring Guidelines
Concrete Foundations Product Specifications
