PI-LITTM Impact Detection System



The PI-LITTM Impact Detection System monitors, detects, and then notifies highway agencies in real time when an impact has occurred on crash cushions, end terminals, guardrail, and cable guardrail systems*. The small device installs easily and quickly without the need for screws or bolts. The cloud-based system sends notices via text or email and comes complete with a robust user interface.



*This product is not intended to replace or reduce the need for routine inspection protocols. Routine inspection protocols should still be followed.

Product Inquiry Form

Features

  • Monitor for Impacts on Critical Safety Equipment
    • Attenuators
    • End terminals
    • Guardrail
    • Cable barrier
  • Real-time Impact Alerts to appropriate personnel
    • SMS
    • Email
  • Remote Sensitivity Tuning
    • Individual control of X, Y, Z axis.
  • GPS tagging
    • Non-invasive mounting.
    • No tools or brackets are required.
  • Additional Features
    • Receive notifications within 60 seconds of impact.
    • Alert includes timestamp, device location, and system photo (at installation).
    • Remotely configurable.
    • Low battery alerts.

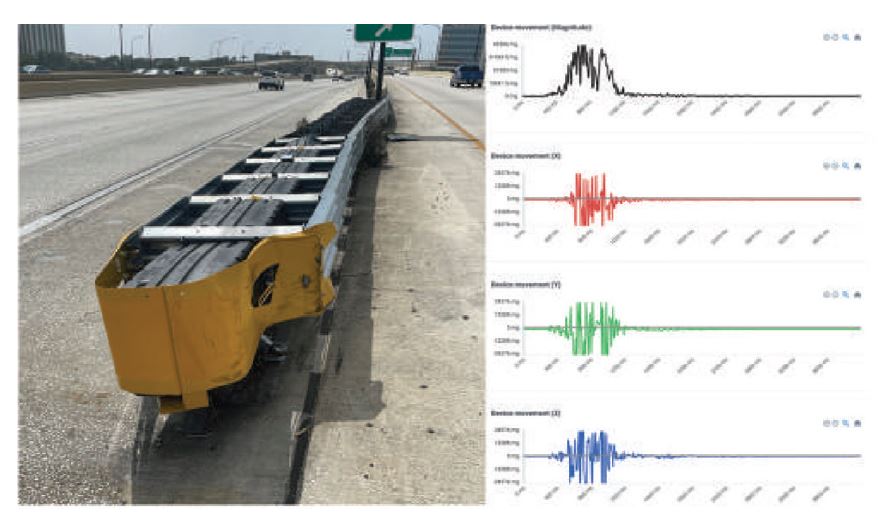

    • Receive g-force impact data.

Specifications

Cellular Network & Radio Mesh Network

  • LTE, CAT-M1 cellular coverage.
  • ATT International coverage with ATT roaming partners.
  • 4GHz radio mesh network communication.
  • Range between device-device communication is approximately 100 meters (line of sight).

4-year Battery Life

  • Default check-in frequency every 24-hours.
  • Low battery alert at 25%.

3 Axis (X, Y, Z) Accelerometer Sensor Onboard

  • Impact sensitivity tuned remotely.
  • Individual axis tuning capable.
  • Impact profiles for severity insight.

IP67 (Dust and Water Protection)

  • Durable construction for superior performance

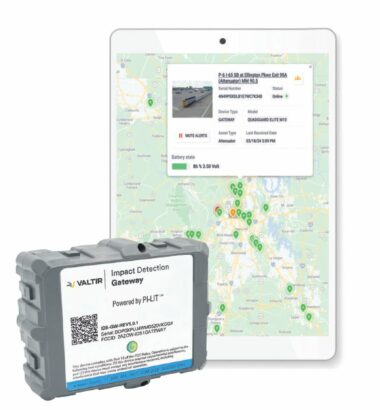

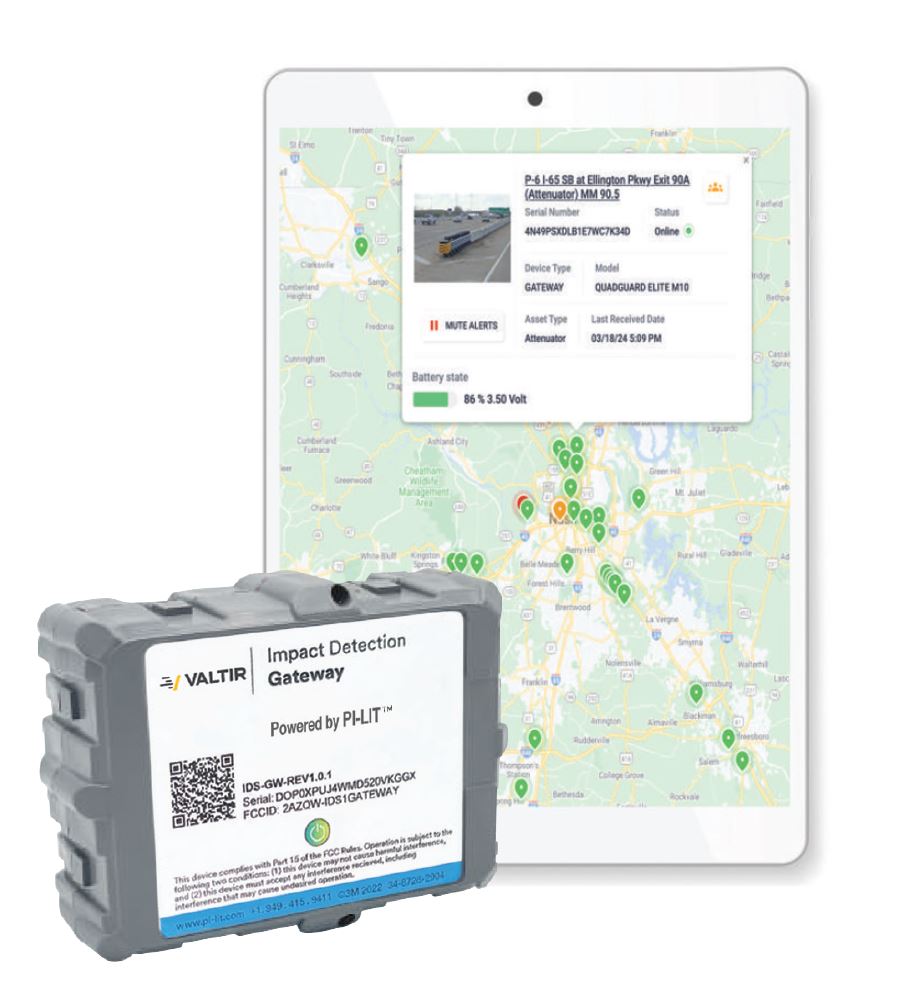

Interior Dashboard

  • Customizable user permissions & team setup.
  • API integration and support.
  • Impact acceleration illustration.
  • Inspection reports.
  • Asset history and logging.
  • Analytics.

General Specs

  • Dimension 5”H x 4”W x 1.5” D
  • 2.4GHz mesh network
  • Range between Gateway and Nodes (400-500 ft)
  • Adjustable default check-in time (standard is 24 hours)

Product Documents

PI Sheet

PI-LITTM Impact Detection System

Manuals

PI-LITTM PRODUCT MANUAL
