GUARD EN

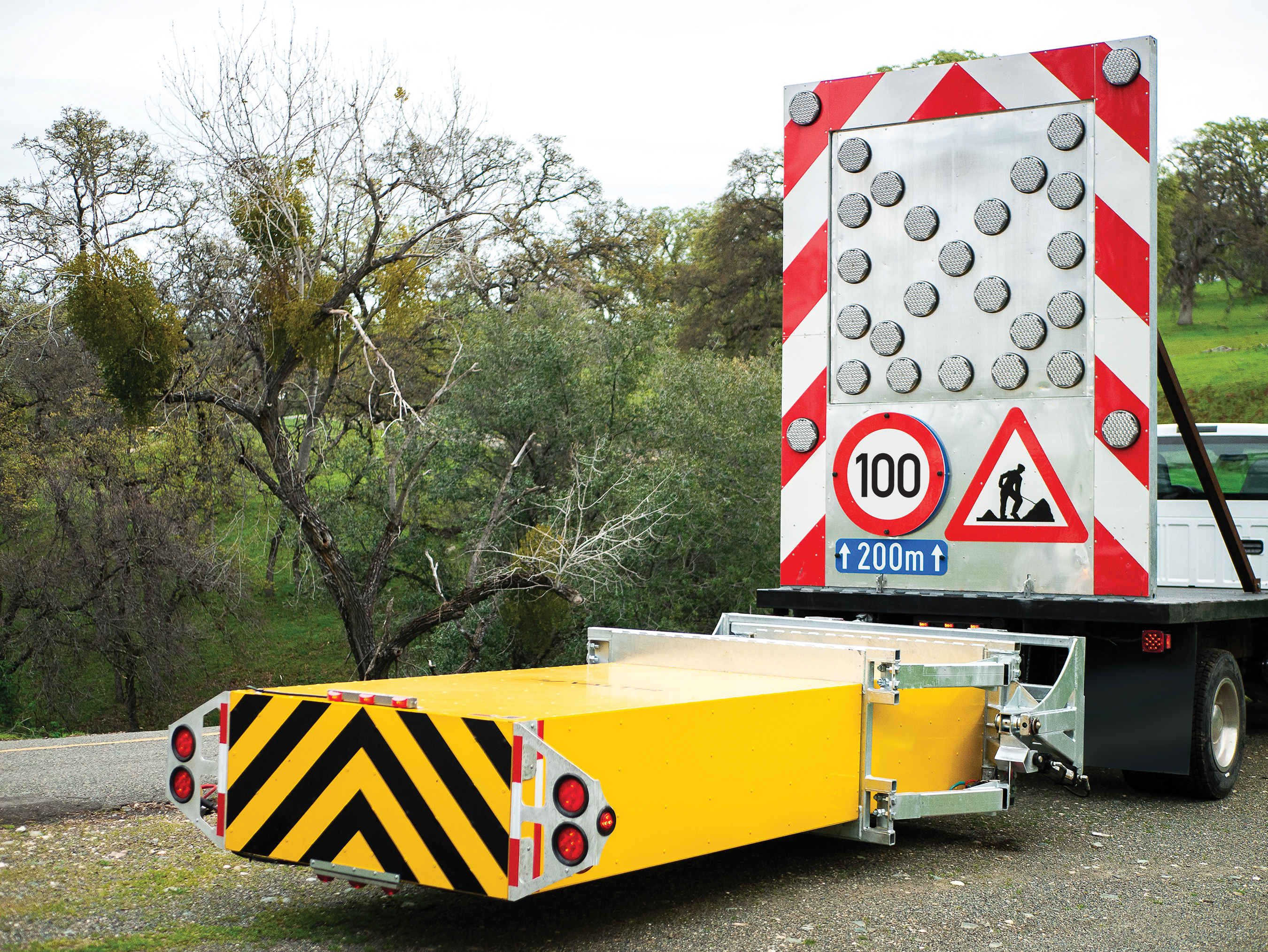

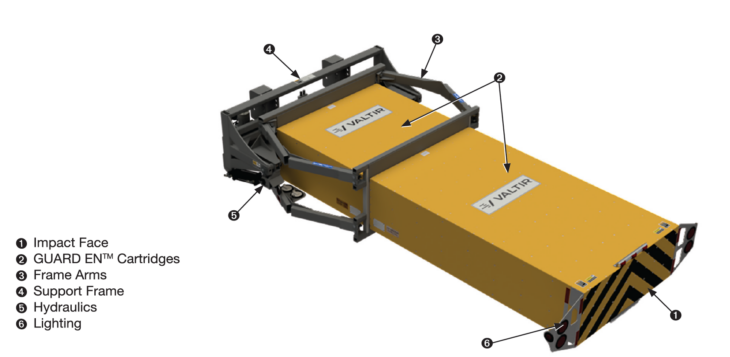

The GUARD EN TM is a truck-mounted attenuator for use on stationary and moving shadow or support vehicles. It is tested to Speed Class 100 under CEN/TS 16786:2018. The unit is comprised of two lightweight aluminum cartridges. The cartridges are mounted to a potentially reusable support frame which houses a 90° hinge allowing for upright storage, maneuverability, and ease of transportation. The GUARD EN TM is designed to help absorb rear-end impacts at speeds up to 100 km/h when impacted within CEN/TS 16786:2018 crash test standards.

Product Inquiry Form


Features

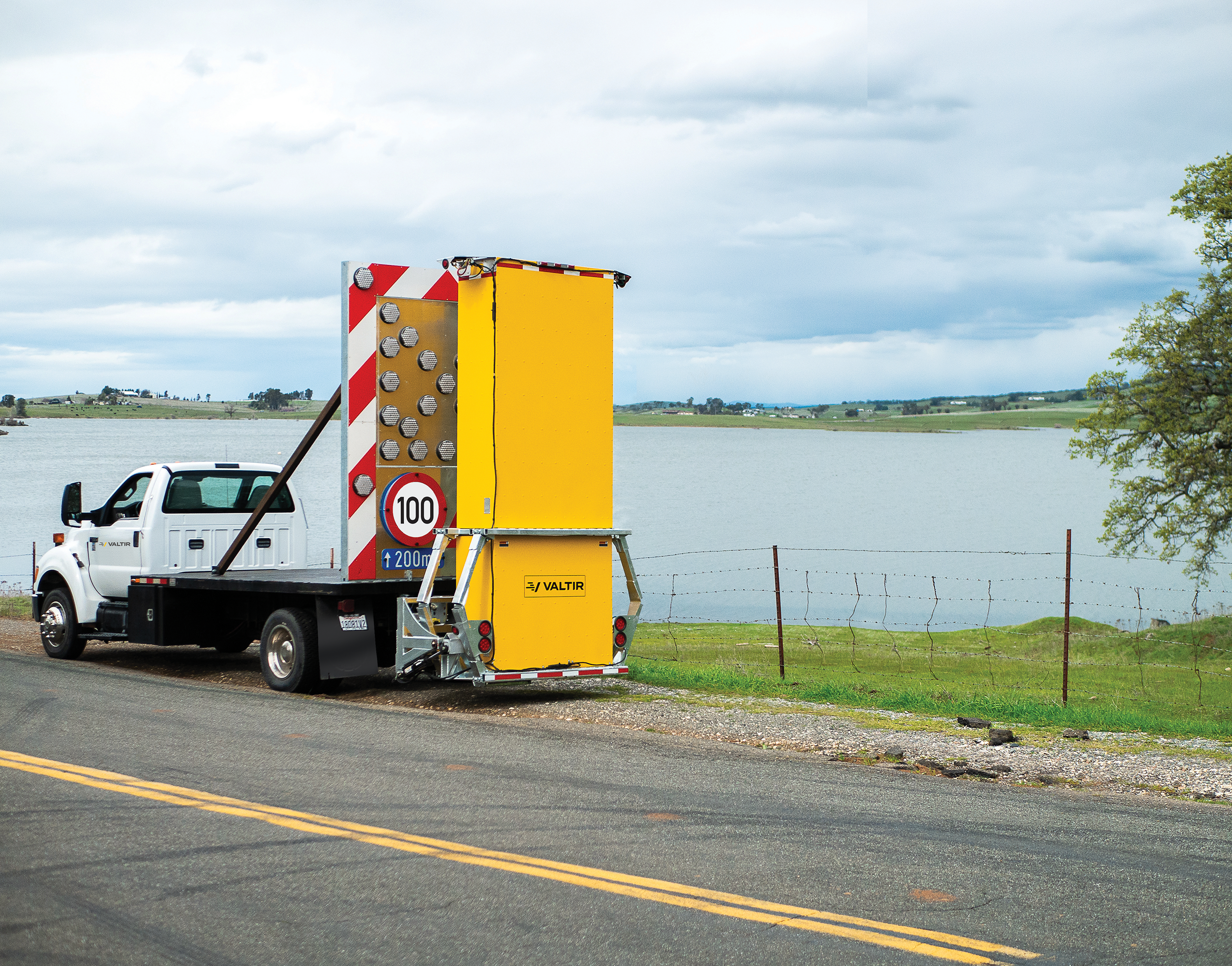

  • Power assisted lift through 90° allowing for compact storage and transport.
  • Potentially replaceable, energy absorbing cartridges.
  • Potentially reusable steel frame*.
  • CEN/TS 16786:2018 tested.
  • Adaptable to all regional EU Homologation requirements.

*After an impact, the product must be inspected and evaluated per the direction of the specifying roadway authority.

Assembly & Maintenance

  • Mountable to all weight-compliant EU truck variations.
  • Full retrofit capability to existing SS90HD installations.
  • Full Sign Board/ VMS integration capability (by others).

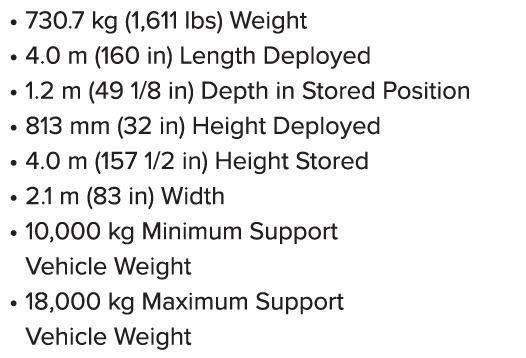

Specifications

Product Images

Product Documents

PI Sheet

GUARD ENTM

Manuals

GUARD ENTM Product Manual (Coming Soon)
