CET™ CASS® End Terminal

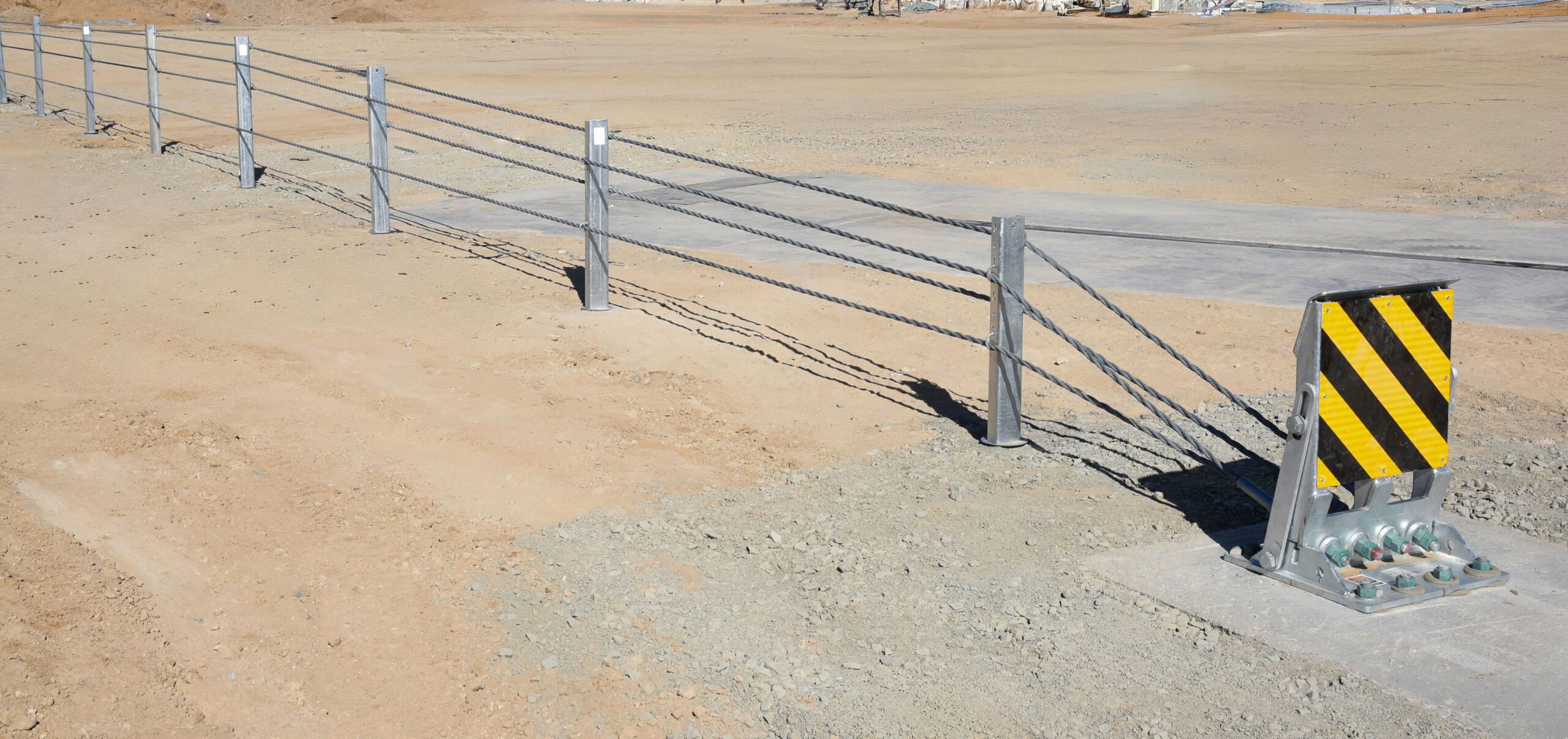

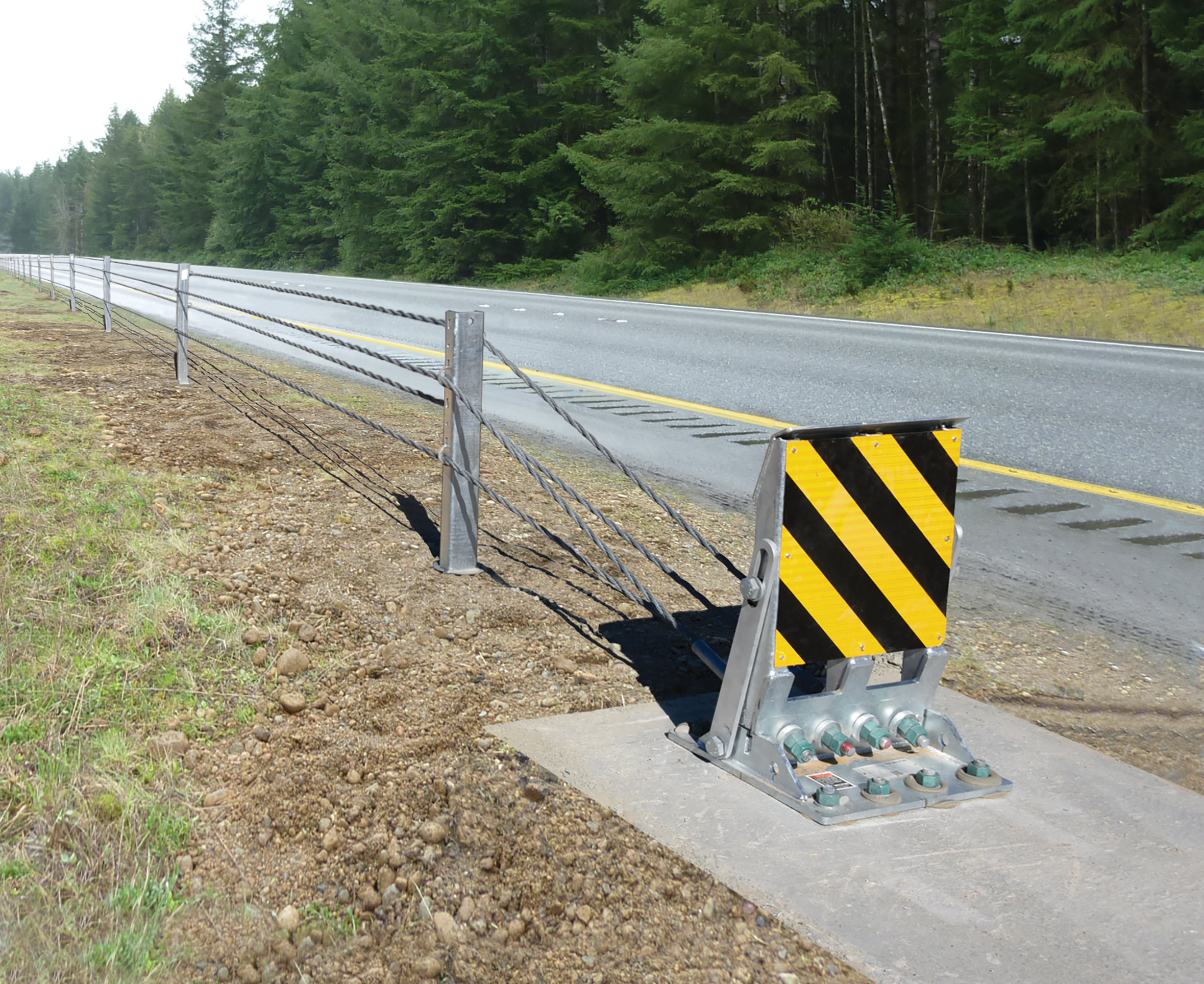

The CET™ is an innovative, tangent, redirective/gating cable end terminal, for use with Valtir’s CASS® S3 M10, a Test Level 3 or Test Level 4 cable barrier, (See FHWA Eligibility Letters B-141F, B-232, B-232A, B-232B and B-232C) in either unidirectional or bidirectional traffic applications – to include roadside, shoulder, median and gore installations.

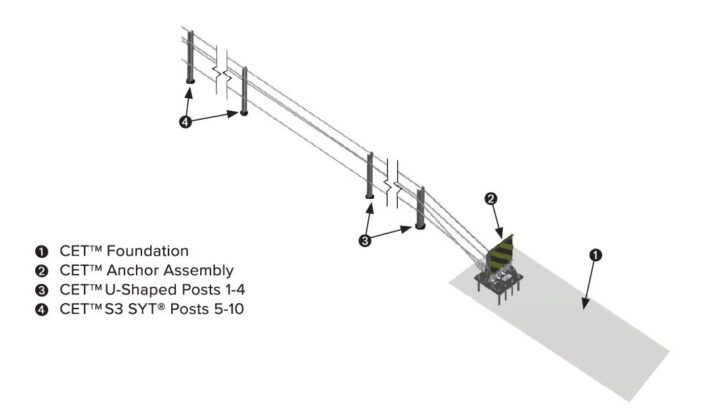

The CET™ is tested to MASH-2nd Edition (with 2020 Errata) Test Level 3 criteria and may be used in Test Level 1 – 3 applications – when installed at the full Test Level 3 system length. During head-on impacts within MASH criteria, the CET™ Anchor Assembly is designed to separate, activating the CET™energy as the vehicle engages the CET™ U-Shaped posts and CET™ S3 SYT® posts, bringing the vehicle to a controlled stop.

Product Inquiry Form

Features

  • Redirective, gating cable end terminal for use with Valtir’s CASS® S3 M10 Cable Barrier.
  • Crash Tested To MASH-2nd Edition Test Level 3.
  • NO Rebar. The CET™ Uses Macro Synthetic Fibers.
  • 36′ 6″ Beginning Length Of Need.

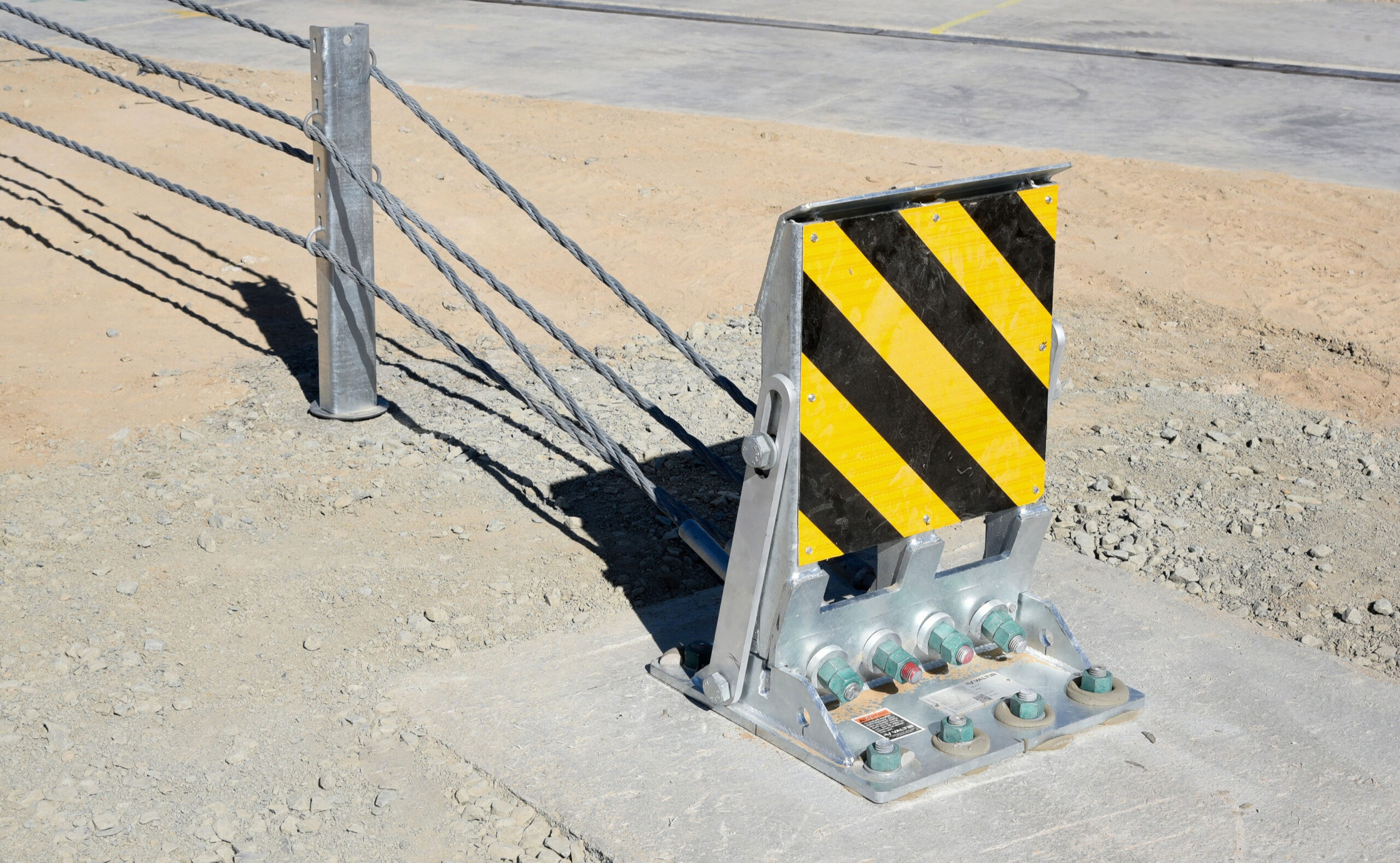

  • CET™ Lower Anchor is Attached with Embedded Anchor Rods and Epoxy.
  • For Unidirectional and bidirectional applications.

Assembly & Maintenance

  • CET™Anchor Block foundation depth is 3′ 6″ [1.07m] and is typically only reinforced with macro synthetic fibers.
  • The CET™ Lower Anchor is utilized as a template for drilling embedded anchor rod locations into cured concrete.
  • Only 1″ [25mm] high-performance cable fittings are allowed to be connected to the CET™Anchor Assembly.
  • Turnbuckles can be installed a maximum of 2,000 LF [610 m] from the CET Anchor Assembly.

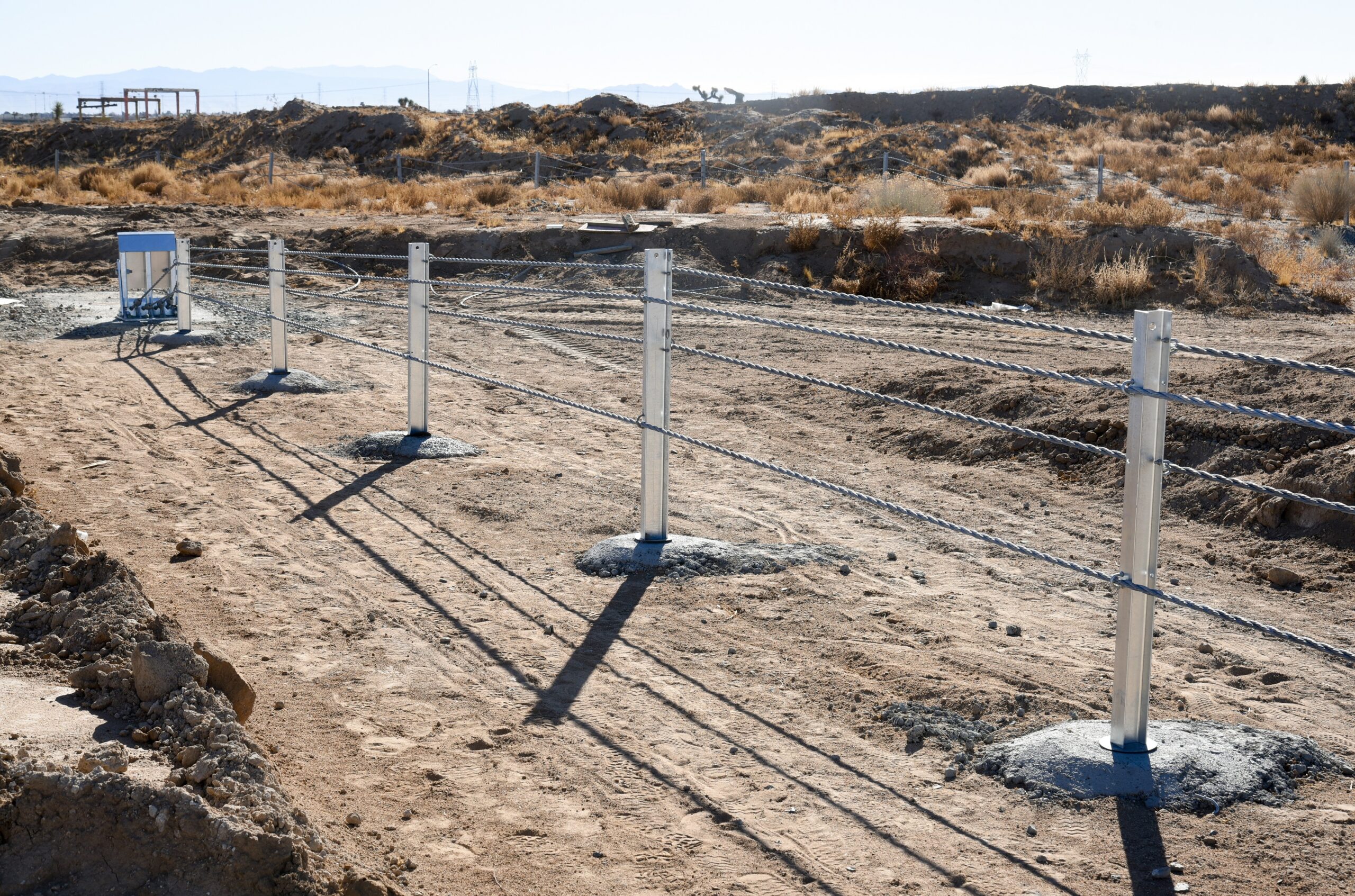

  • All posts within the CET™are inserted into tube sleeves to enhance
    installation and ease of repair.
  • Additional cylindrical anchor foundation options are available.



*After an impact, the product must be inspected and evaluated per the direction of the specifying roadway authority. The ultimate decision on reparability rests with the specifying roadway authority and/or state DOT.

Specifications

  • System Weight: ~655 lbs. [~297kg]
  • System Length: 99′ 6″ [~30m]
  • System Width (at Anchor Assembly): 19″ [483mm]
  • CET™ cables transition from near finished grade to CASS® S3 System heights.
  • Beginning Length of Need (“BLON”) established during MASH Test 3-35 at Post #4, 36′ 6″ [927mm] from CET™ Anchor Assembly.

Product Images



Product Documents

PI Sheet

CET End Terminal

Manuals

CASS® S3 4:1 with CASS® End Terminal (CET)

Drawings

CET SS2380 Drawing
