ABC Terminal

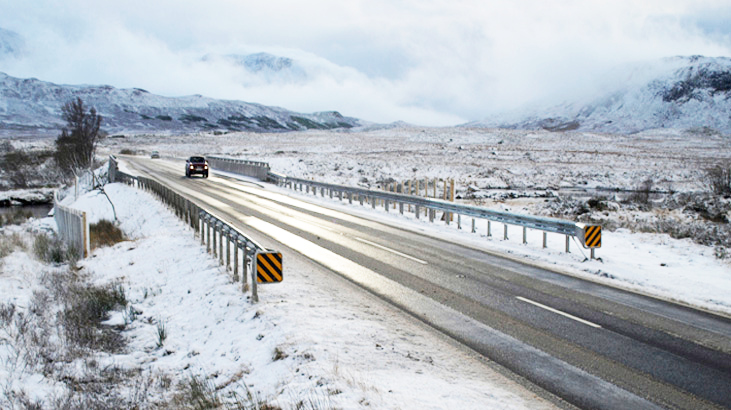

The ABC™ Terminal consists of an End Rail and Head Assembly, W-Beam barrier panels and C-channel posts. The ABC™ Terminal is tested to European Pre-Standard ENV 1317-4 for use at the beginning and/or end of a barrier. The end terminal is designed to D1.1, Z1 (Permanent Lateral Displacement Zone).

Product Inquiry Form


  • Contains vehicle and system debris at the minimum measured D1.1.
  • Performs with lightweight cars (900 kg), and heavier European vehicles (1,500 kg).
  • Tested to 110 km/h (P4).
  • Z1 Exit Box rating.
  • Potentially reusable components.*
  • Utilizes breakaway steel post technology.


*After an impact, the product must be inspected and evaluated per the direction of the specifying roadway authority. The ultimate decision on reusability rests with the specifying roadway authority and/or state DOT.

Assembly & Maintenance

  • Average installation is less than 2 hours.
  • Stainless steel shear pin helps facilitate repair.



  • W-Beam barrier


  • Length (110 km/h System): 12.36 m
  • Post Spacing: 1.33 m
  • Weight: 630 kg
